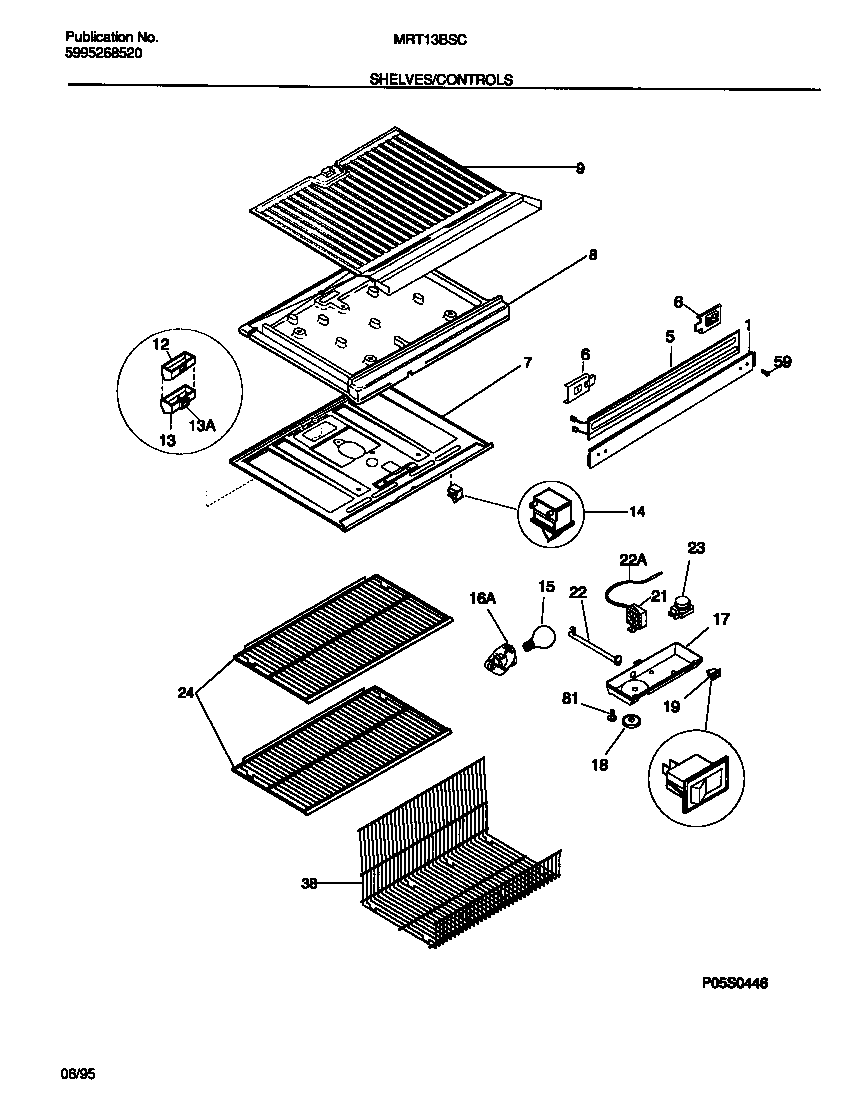

MRT13BSCW0 04 – SHELVES/CONTROLS

MRT13BSCW0 04 – SHELVES/CONTROLS

Written by

in

MRT13BSCW0 04 – SHELVES/CONTROLS

Products

PositionProduct
1WCI 218430701
5WCI 218271401
6WCI 218279800
7BWCI 5303001380
7AWCI 5303270919
8C3205266 Frigidaire Refrigerator Edge Protector
8AWCI 5303270921
8BHARNESS, WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
9BOTTOM PANEL-FRZR
12ADEFLECTRO, AIR, W/SEAL
12B5303001449 Frigidaire Refrigerator Seal
13WCI 5303001448
13EXTENSION, AIR DEFLECTOR, WITH INSULATION
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16218906802 Frigidaire Light Lamp Socket
17AWCI 5303307349
17BNUT, ANCHOR (NI)
18WCI 5303307352
19SWITCH-ENERGY SAVER, ROCKER
21BWCI 5303001260
21AWCI 5303302297
22HOUSING-TEMP SENSOR, PLASTIC
22TUBE
23B5304455649 Frigidaire Refrigerator Screw
23A215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24SHELF-SLIDING, WIRE, REFR SECTION
38WCI 5303310496
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
815304455650 Frigidaire Refrigerator Screw
