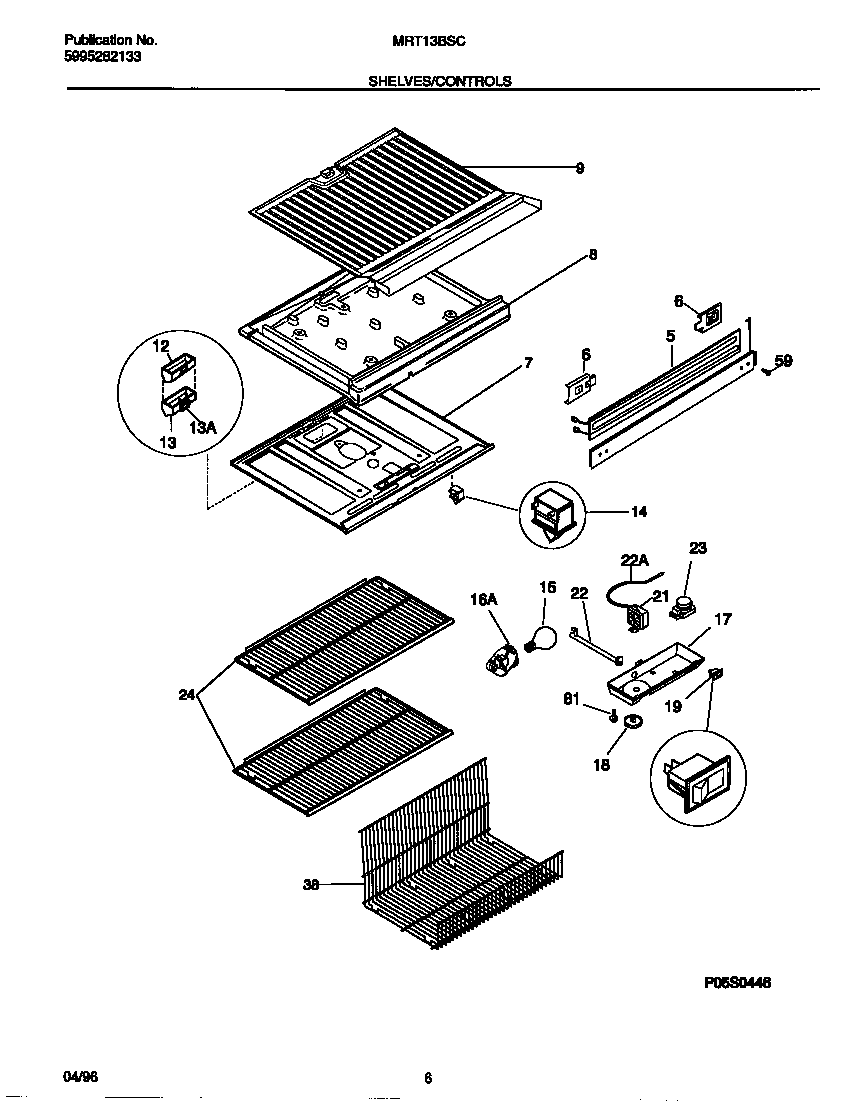

MRT13BSCW1 04 – SHELVES/CONTROLS

Products

Position	Product
1	WCI 218430701
5	WCI 218271401
6	WCI 218279800
7A	WCI 218597300
7B	WCI 5303001380
8C	HARNESS, WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
8A	WCI 5303270921
8B	3205266 Frigidaire Refrigerator Edge Protector
9	BOTTOM PANEL-FRZR
12B	5303001449 Frigidaire Refrigerator Seal
12A	WCI 218630800
13	WCI 218631001
13	EXTENSION, AIR DEFLECTOR, WITH INSULATION
14	5309918806 Frigidaire Refrigerator Light Switch Door
15	316538904 Frigidaire Oven Lamp Light
16	218906802 Frigidaire Light Lamp Socket
17A	WCI 5303307349
17B	NUT, ANCHOR (NI)
18	WCI 5303311079
19	SWITCH-ENERGY SAVER, ROCKER
21A	WCI 5303018894
21B	WCI 5303001260
22	HOUSING-TEMP SENSOR, PLASTIC
22	TUBE
23B	5304455649 Frigidaire Refrigerator Screw
23A	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24	SHELF-SLIDING, WIRE, REFR SECTION
38	WCI 5303310496
59	240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
81	5304455650 Frigidaire Refrigerator Screw
