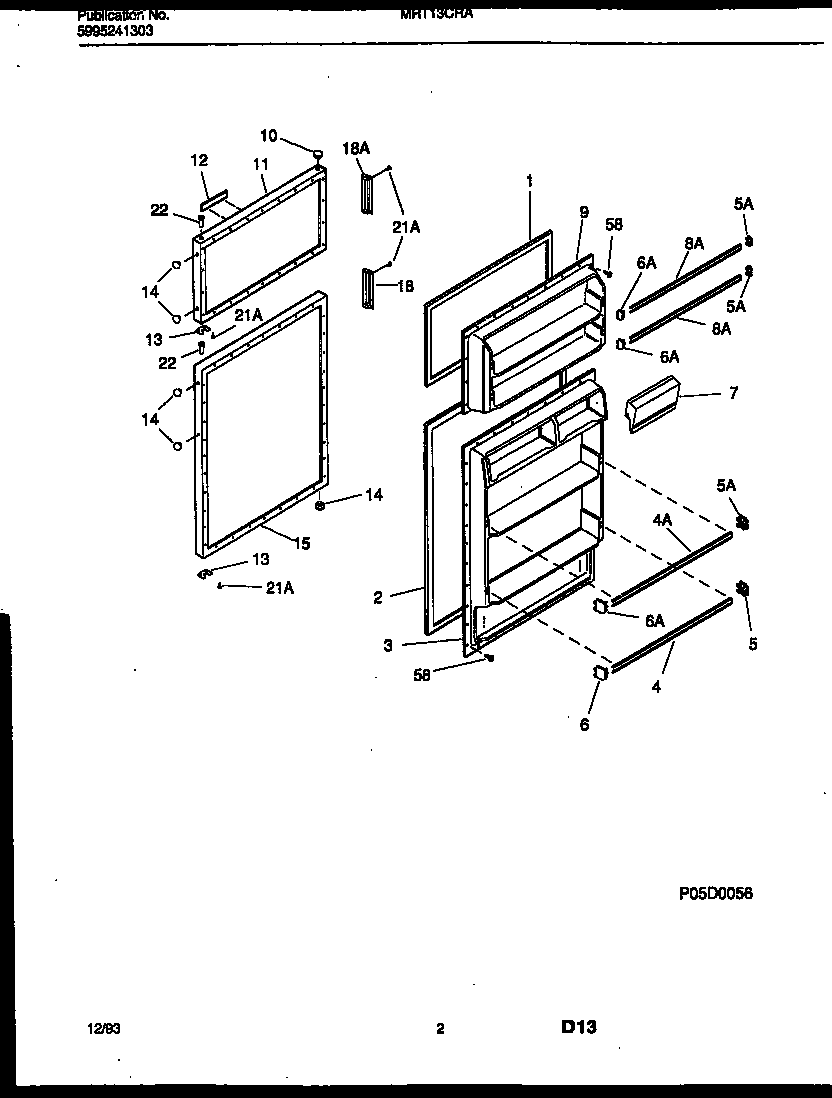

MRT13CRAW0 02 – DOOR PARTSadmin2025-04-26T12:24:08+00:00MRT13CRAW0 02 – DOOR PARTS
Products
| Position | Product |
|---|
| *90771 | INSULATION |
| 1 | GASKET-FRZR DOOR, WHITE, MAGNETIC |
| 2 | GASKET-REFR DOOR, WHITE, MAGNETIC |
| 3 | PANEL-INNER DOOR, REFR |
| 4 | 215366002 Frigidaire Refrigerator Door Wide Rack |
| 4A | RACK-DOOR, 23.16`` X 1.12`` |
| 5 | WCI 3206150 |
| 5A | 3206165 Frigidaire Bar Endcap Right Hand |
| 6 | WCI 3206151 |
| 6A | 3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support |
| 7 | WCI 5303276149 |
| 8A | RACK-DOOR, 22.59`` X 1.12`` |
| 9 | PANEL-INNER DOOR, FRZR |
| 10 | PLUG-BUTTON, WHITE, HINGE BRG HOLE |
| 11 | WCI 3916563 |
| 12 | WCI 215503701 |
| 12A | TAPE, ADHESIVE, 12`` LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED) |
| 13 | WCI 5308000255 |
| 14 | 240494001 Frigidaire Refrigerator Plug Button |
| 15 | WCI 5303916850 |
| 18 | WCI 5303273079 |
| 18A | WCI 5303273081 |
| 21A | WCI 5308011745 |
| 22 | BEARING-HINGE |
| 58 | 5304455651 Frigidaire Refrigerator Screw |
