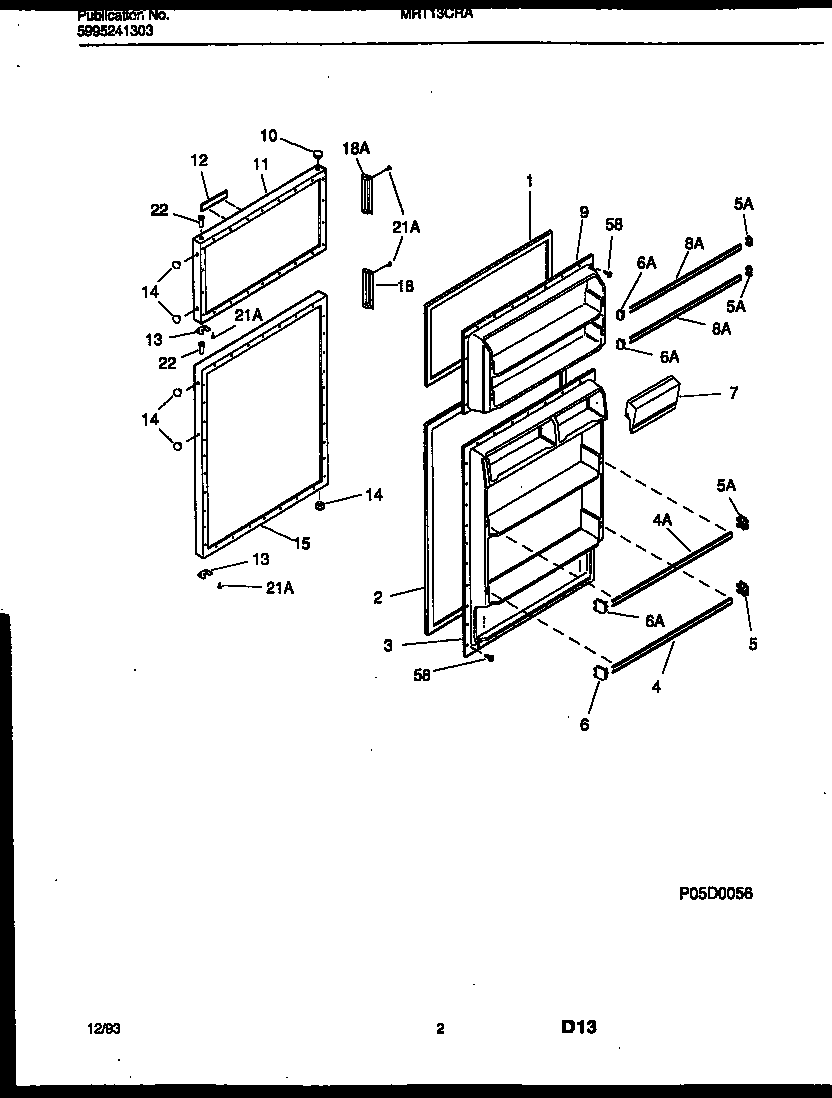

MRT13CRAY0 02 – DOOR PARTS

Products

Position	Product
*90771	INSULATION
1	GASKET-FRZR DOOR, ALMOND, MAGNETIC
2	WCI 5303299984
3	PANEL-INNER DOOR, REFR
4	215366002 Frigidaire Refrigerator Door Wide Rack
4A	RACK-DOOR, 23.16“ X 1.12“
5A	3206165 Frigidaire Bar Endcap Right Hand
5	WCI 3206150
6	WCI 3206151
6A	3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
7	WCI 5303276149
8A	RACK-DOOR, 22.59“ X 1.12“
9	PANEL-INNER DOOR, FRZR
10	PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11	FREEZER DOOR-ALMD
12	WCI 215503711
12A	TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
13	WCI 5308000255
14	PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15	WCI 5303916854
18	WCI 5303273080
18A	WCI 5303273082
21A	WCI 5308011745
22	BEARING-HINGE
58	5304455651 Frigidaire Refrigerator Screw
