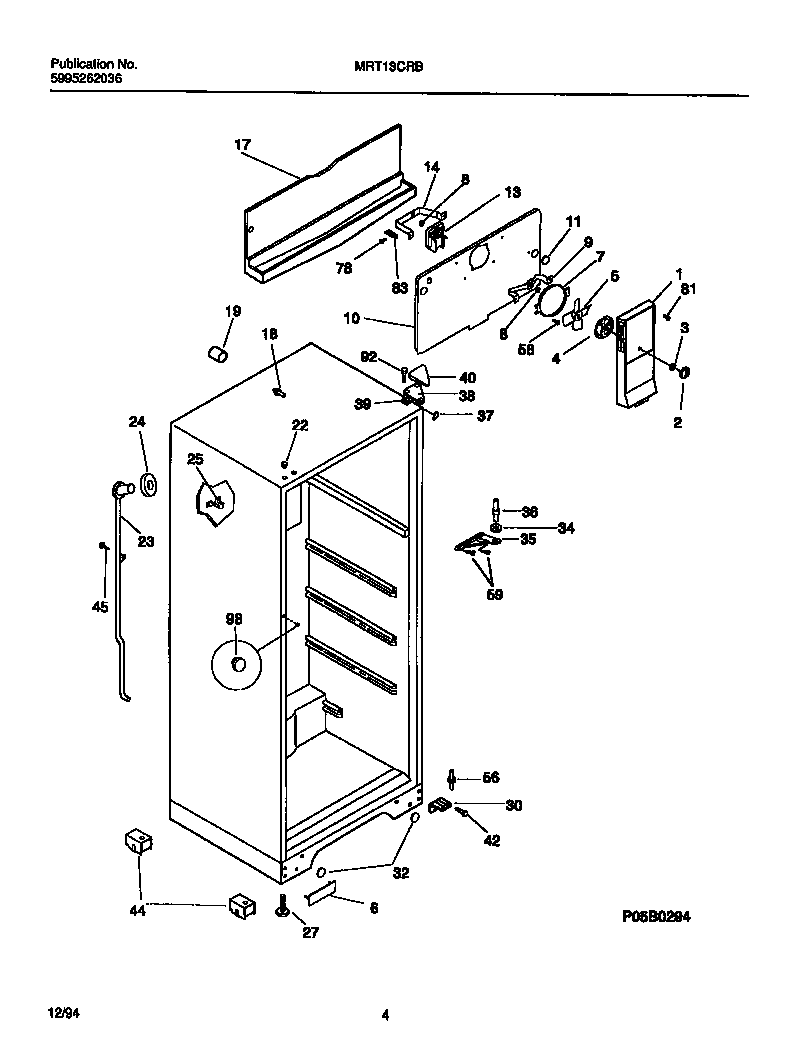

MRT13CRBD2 03 – CABINET W/ FAN ASSEMBLY

Products

Position	Product
*52720	TOUCH, UP PAINT, ALMOND (NI)
1	WCI 5303307350
2	WCI 5303307351
3	Nut,push-on
4	WCI 3206110
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	WCI 215846500
7	RING-FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303205118
10	WCI 5303270917
11	5303208309 Frigidaire Refrigerator Plug Hole
13	5300158289 Frigidaire Evaporator Fan Motor
14	BRACKET-MOTOR MTG, REAR
17	WCI 3206146
18	SUPPORT – EVAP COVER, (2)
19	TUBE-RUBBER
22	WCI 215774911
23	TUBE-DRAIN, W/SEAL RING
24	WCI 5303207353
25	WCI 215774100
27	SCREW-LEVELING, (2)
30	WCI 3206136
30	SHIM, LOWER HINGE (NI)
30	TAPPING PLATE, LOWER HINGE, (2) (NI)
32	WCI 215217702
34	WCI 5308000186
35	WCI 218220102
36	218251300 Frigidaire Refrigerator Center Hinge Pin
37	TRIM-CABINET CORNER, ALMOND
38	WCI 3206100
39	SHIM – UPPER HINGE
40	WCI 3206105
42	241710601 Frigidaire Refrigerator Screw
44	ROLLER ASSY, METAL HOUSING, REAR, (2)
45	5304455651 Frigidaire Refrigerator Screw
56	5303001321 Frigidaire Refrigerator Lower Hinge Pin
59	240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
81	5304455650 Frigidaire Refrigerator Screw
83	WCI 5308000107
98	PLUG-BUTTON, ALMOND, CTR HINGE HOLE
