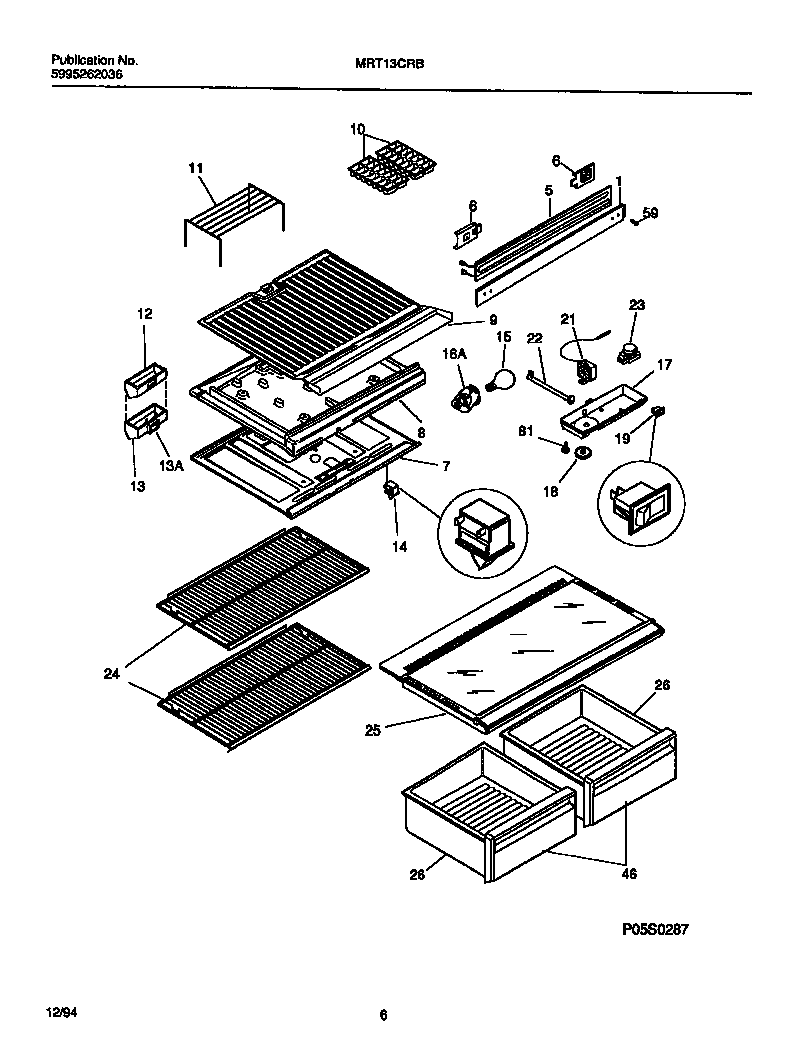

MRT13CRBD2 04 – SHELVES, CONTROLS, DIVIDER, MULLION

MRT13CRBD2 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Written by

in

MRT13CRBD2 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Products

PositionProduct
1WCI 218430711
5WCI 218271401
6WCI 218279800
7WCI 5303001380
7WCI 5303270919
83205266 Frigidaire Refrigerator Edge Protector
8WCI 5303270921
8HARNESS, WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
9BOTTOM PANEL-FRZR
10215667501 Frigidaire Refrigerator Ice Tray Primary
11SHELF-FREEZER, “TABLE TYPE“
125303001449 Frigidaire Refrigerator Seal
12DEFLECTRO, AIR, W/SEAL
13WCI 5303001448
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17WCI 5303307349
17NUT, ANCHOR (NI)
18WCI 5303307352
19SWITCH-ENERGY SAVER, ROCKER
21WCI 5303302297
21WCI 5303001260
22HOUSING-TEMP SENSOR, PLASTIC
235304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24SHELF-SLIDING, WIRE, REFR SECTION
25COVER-CRISPER PAN
26PAN-CRISPER, FULL-WIDTH
46WCI 5303304705
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
815304455650 Frigidaire Refrigerator Screw
