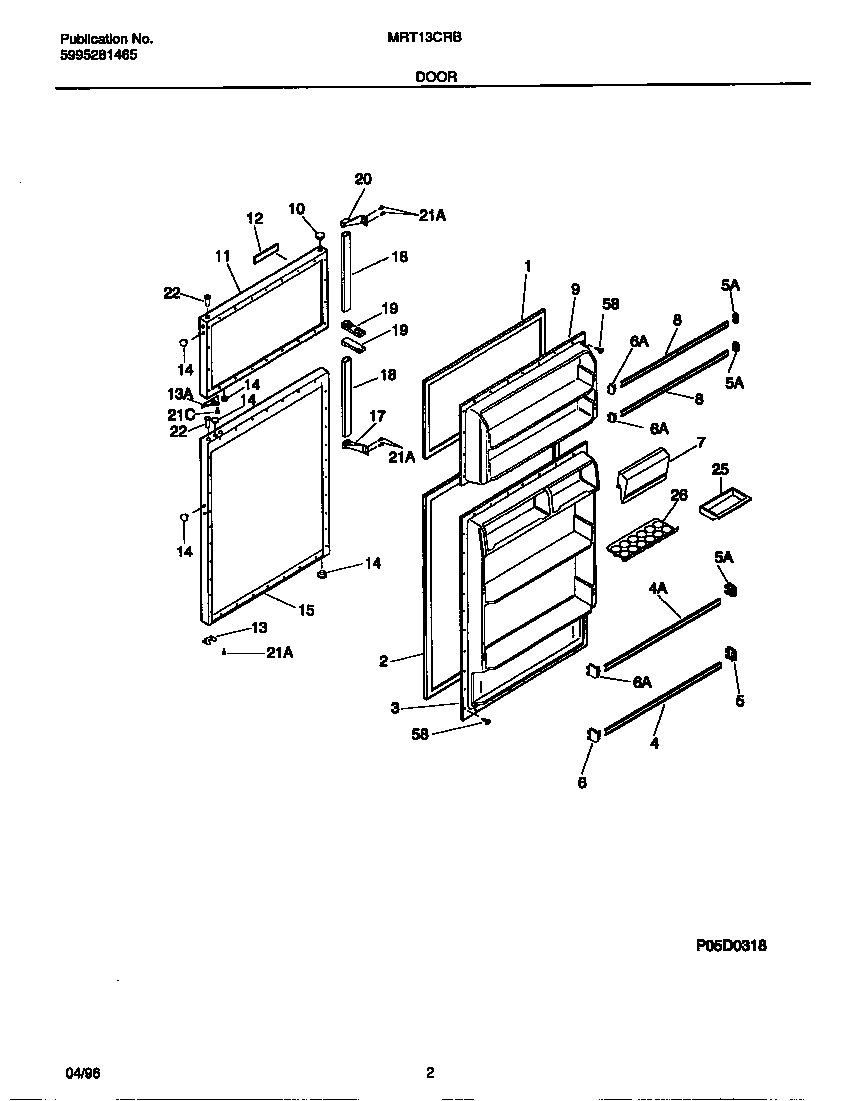

MRT13CRBD3 02 – DOOR

MRT13CRBD3 02 – DOOR

Written by

in

MRT13CRBD3 02 – DOOR

Products

PositionProduct
*12880INSULATION
1WCI 215608901
2WCI 5303299984
3PANEL-INNER DOOR, REFR
4215366002 Frigidaire Refrigerator Door Wide Rack
4RACK-DOOR, 23.16“ X 1.12“
53206165 Frigidaire Bar Endcap Right Hand
5WCI 3206150
6WCI 3206151
63206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
7DOOR-DAIRY
8RACK-DOOR, 22.59“ X 1.12“
9PANEL-INNER DOOR, FRZR
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917754
12WCI 215503711
13WCI 218249002
13WCI 5308000255
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15WCI 5303917763
17HANDLE END
18WCI 5303302991
19WCI 218217401
20HANDLE END
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
21218252201 Frigidaire Refrigerator Screw
22WCI 218519300
255308000716 Frigidaire Refrigerator Dish
26215817806 Frigidaire Refrigerator Egg Tray
58216858001 Frigidaire Refrigerator Screw
