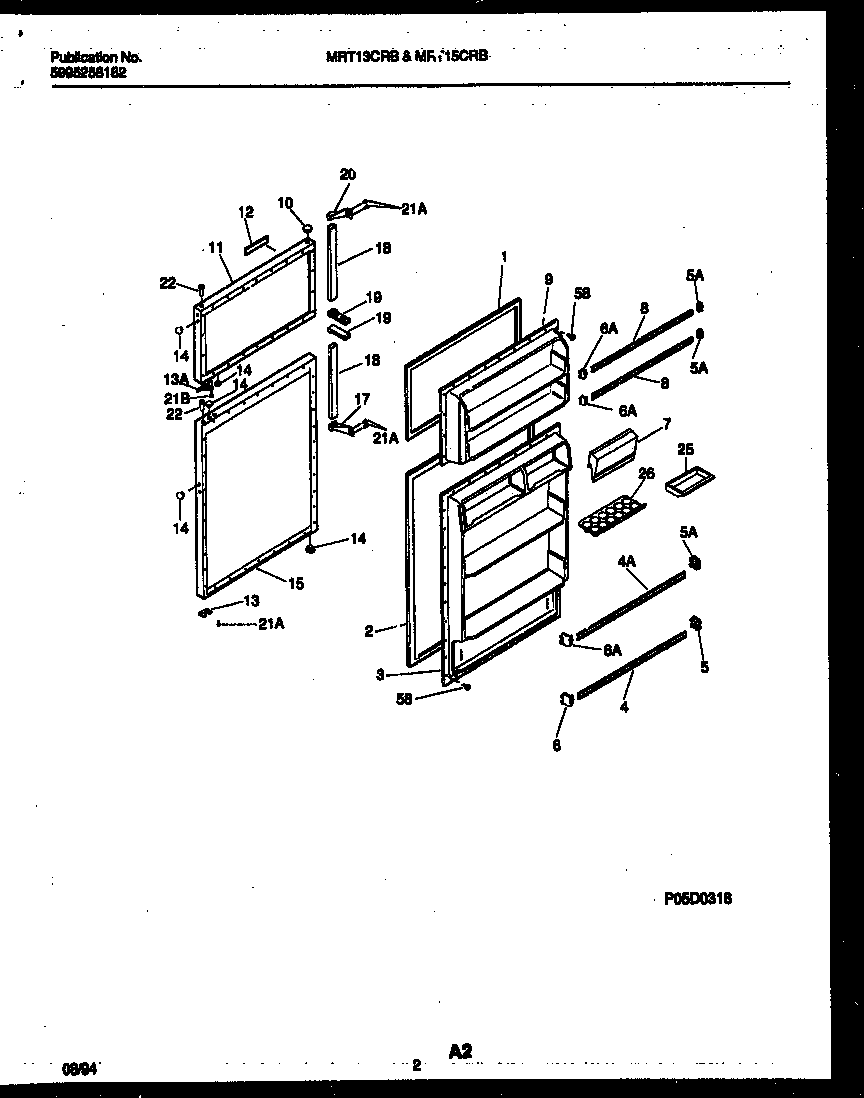

MRT13CRBW1 02 – DOOR PARTS

MRT13CRBW1 02 – DOOR PARTS

Written by

in

MRT13CRBW1 02 – DOOR PARTS

Products

PositionProduct
*11125INSULATION
1GASKET-FRZR DOOR, MAGNETIC, WHITE
2GASKET-REFR DOOR, WHITE, MAGNETIC
3PANEL-INNER DOOR, REFR
4ARACK-DOOR, 23.16“ X 1.12“
4215366002 Frigidaire Refrigerator Door Wide Rack
5WCI 3206150
5A3206165 Frigidaire Bar Endcap Right Hand
6A3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
6WCI 3206151
7DOOR-DAIRY
8RACK-DOOR, 22.59“ X 1.12“
9PANEL-INNER DOOR, FRZR
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303917457
12WCI 215503701
13WCI 5308000255
13AWCI 218249001
14240494001 Frigidaire Refrigerator Plug Button
15WCI 5303917455
17HANDLE END
18WCI 5303302990
19WCI 218217401
20HANDLE END
21ASCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
21B218252201 Frigidaire Refrigerator Screw
22BEARING-HINGE
255308000716 Frigidaire Refrigerator Dish
26215817806 Frigidaire Refrigerator Egg Tray
585304455651 Frigidaire Refrigerator Screw
