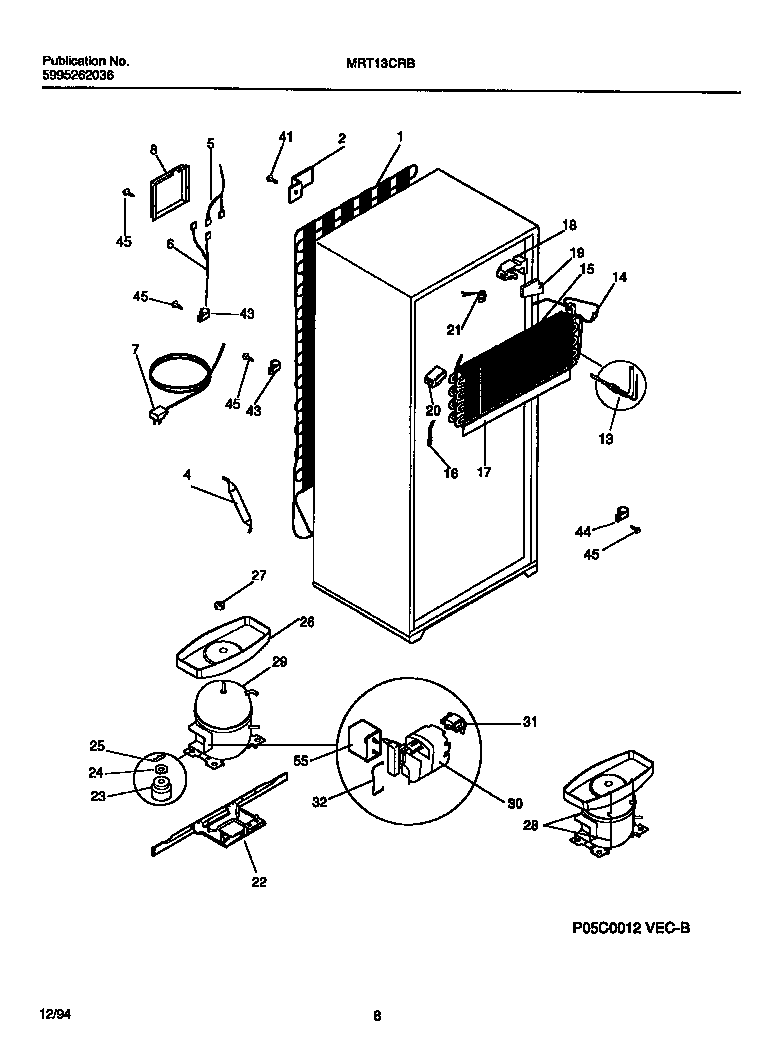

MRT13CRBW2 05 – COOLING SYSTEM

Products

Position	Product
*52722	WCI 3916557
1	WCI 5303270924
2	BRACKET, MOUNTIN, CONDENSER, (4)
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5	HARNESS, WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
6	WCI 215257003
7	CORD-ELECTRIC POWER
8	WCI 5303001197
13	WCI 215133500
14	WCI 5308009754
15	EVAPORATOR
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	INSULATOR-EVAP, PLASTIC
18	INSULATION BLOCK, RH
19	INSULATION PLUG, RH
20	INSULATION BLOCK, LH
21	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22	WCI 3206126
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
24	WASHER-COMPR MTG
25	CLIP – COMPRESSOR MTG
26	PAN-DEFROST DRAIN, ORIG/SVCE COMPR
26	5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
27	WCI 53001348
28	PAN RETAINER KIT, SERVICE
29	WCI 5303917249
30	WCI 216008900
31	WCI 5303295345
32	WCI 215012000
41	5308000039 Frigidaire Refrigerator Screw
43	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
44	5308000133 Frigidaire Refrigerator Clamp
45	5304455651 Frigidaire Refrigerator Screw
55	5304464438 Frigidaire Compressor Run Capacitor
