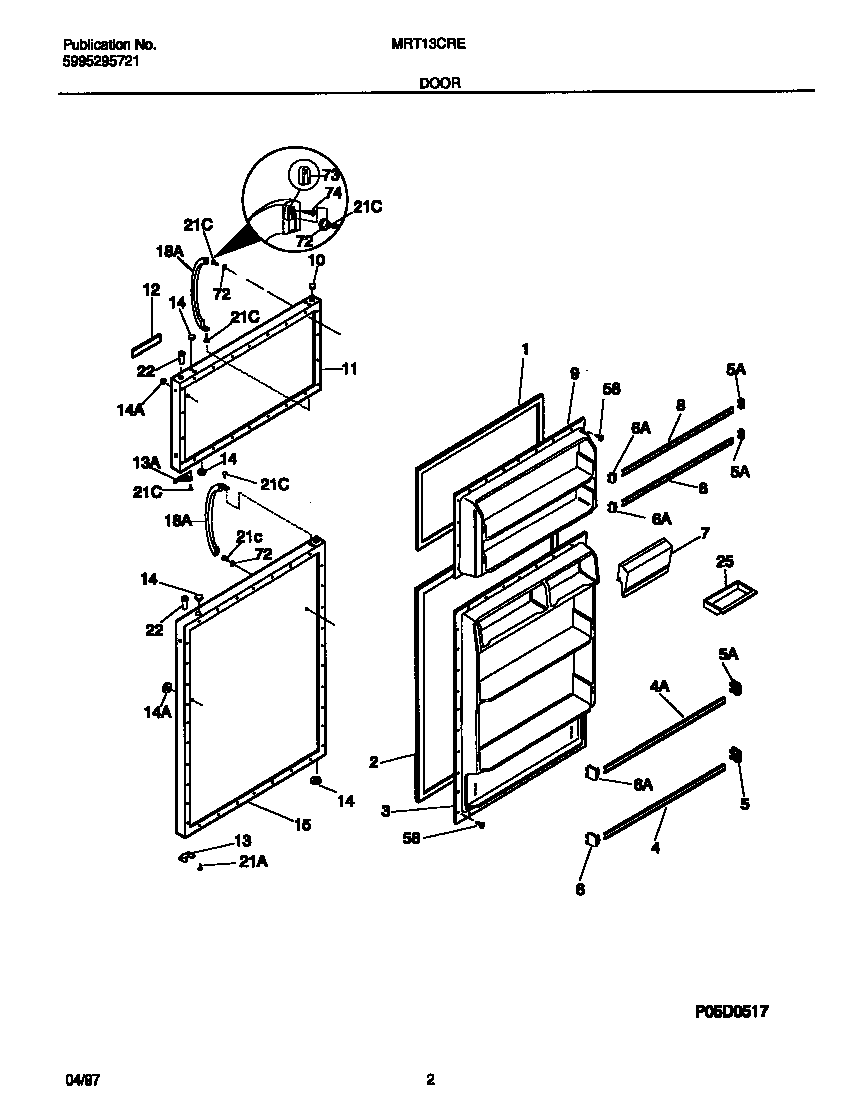

MRT13CRED1 02 – DOOR

MRT13CRED1 02 – DOOR

Written by

in

MRT13CRED1 02 – DOOR

Products

PositionProduct
*69160INSULATION
1WCI 215608901
2WCI 5303299984
3PANEL-INNER DOOR, REFR
4215366002 Frigidaire Refrigerator Door Wide Rack
4RACK-DOOR, 23.16“ X 1.12“
5WCI 5303324320
53206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
6WCI 3206151
63206165 Frigidaire Bar Endcap Right Hand
7DOOR-DAIRY
8RACK-DOOR, 22.59“ X 1.12“
9PANEL-INNER DOOR, FRZR
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917815
12MAGNET-NAMEPLATE (NOT ILLUSTRATED)
12WCI 218428202
13WCI 5308000255
13WCI 218249002
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
14PLUG-BUTTON, ALMOND, REFR DOOR FRONT, UPPER
15WCI 5303917817
18WCI 218428102
21218252201 Frigidaire Refrigerator Screw
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
22WCI 218519300
255308000716 Frigidaire Refrigerator Dish
58216858001 Frigidaire Refrigerator Screw
72WCI 218397000
73218396700 Frigidaire Door Handle Mounting Block
74215503203 Frigidaire Refrigerator Door Handle Screw
