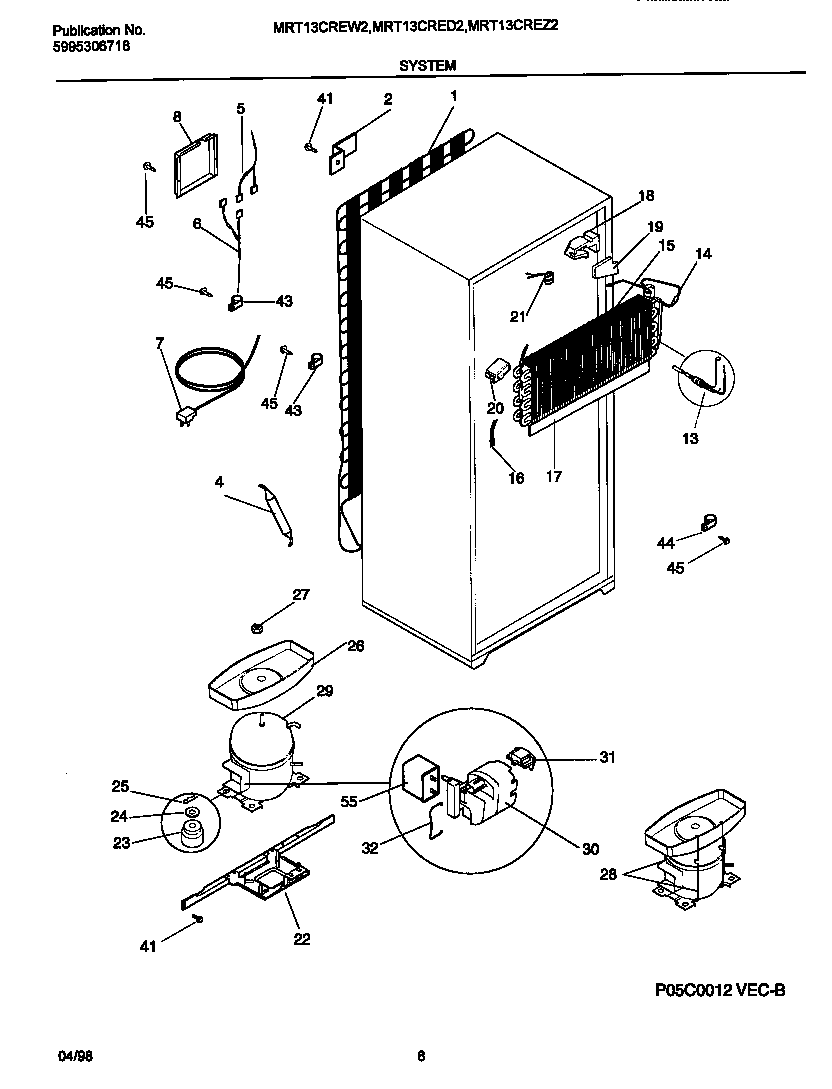

MRT13CRED2 05 – SYSTEM

MRT13CRED2 05 – SYSTEM

Written by

in

MRT13CRED2 05 – SYSTEM

Products

PositionProduct
*04936WCI 3916557
*04933WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
*049355304455852 Frigidaire Refrigerator Screw
*04934218843801 Frigidaire Refrigerator Screw
1WCI 5303270924
2BRACKET, MOUNTIN, CONDENSER, (4)
45303305677 Frigidaire Replacement Filter Dryer Filters
5HARNESS, WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
6WCI 215257003
7CORD-ELECTRIC POWER
8WCI 5303001197
13WCI 218429302
14WCI 5308009754
15EVAPORATOR
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17INSULATOR-EVAP, PLASTIC
18INSULATION BLOCK, RH
19INSULATION PLUG, RH
20INSULATION BLOCK, LH
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22WCI 218802500
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24WASHER-COMPR MTG
25CLIP – COMPRESSOR MTG
26WCI 215372500
27Nut,lock `1/4-20 ,drain pan mtg
28PAN RETAINER KIT, SERVICE
295304511983 Frigidaire Refrigerator Compressor Assembly Kit
30WCI 216008900
31WCI 5303299560
32WCI 215012000
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
445308000133 Frigidaire Refrigerator Clamp
455304455651 Frigidaire Refrigerator Screw
555304464438 Frigidaire Compressor Run Capacitor
