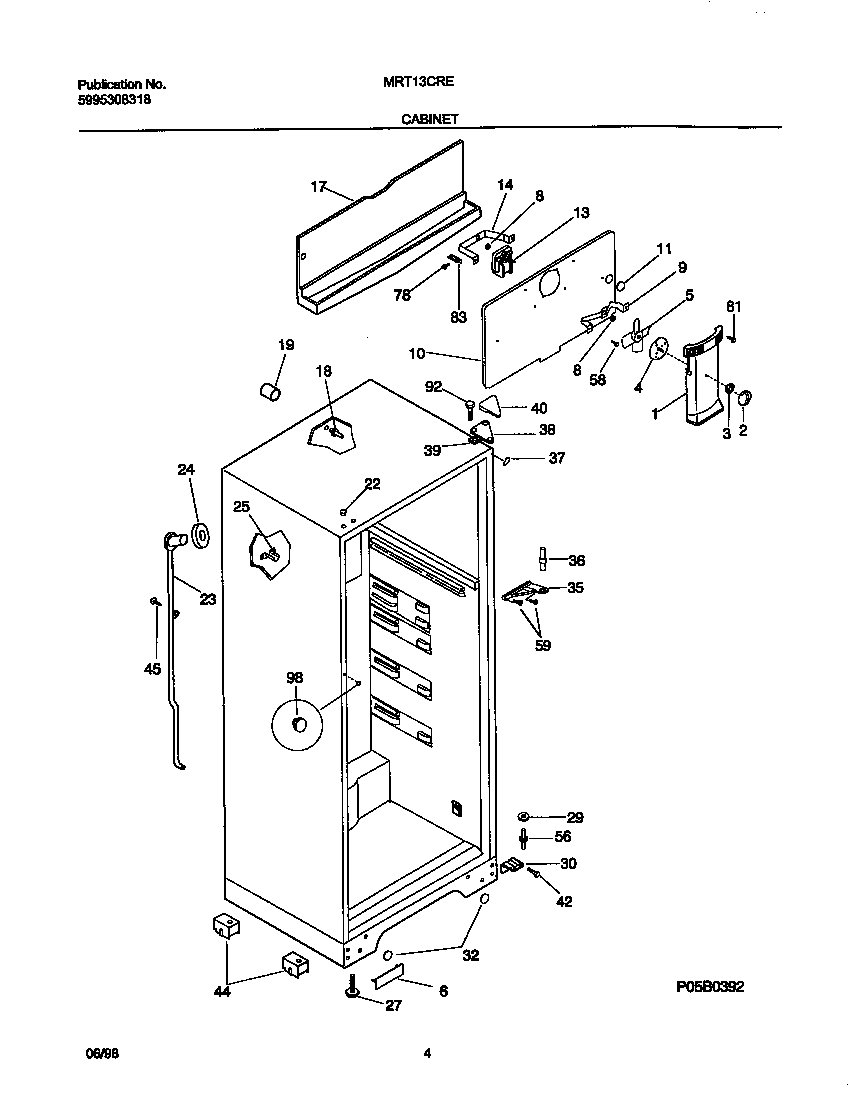

MRT13CRED3 03 – CABINET

MRT13CRED3 03 – CABINET

Written by

in

MRT13CRED3 03 – CABINET

Products

PositionProduct
*48283TAPPING PLATE, LOWER HINGE, (2) (NI)
*48282NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*48284SHIM, LOWER HINGE (NI)
*48285TOUCH, UP PAINT, ALMOND (NI)
1WCI 218672501
2WCI 5303307351
3Nut,push-on
4WCI 218722200
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
6WCI 218448302
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10WCI 218832000
115303208309 Frigidaire Refrigerator Plug Hole
135300158289 Frigidaire Evaporator Fan Motor
14WCI 5303322992
17WCI 218725601
18SUPPORT – EVAP COVER, (2)
19TUBE-RUBBER
22WCI 215774911
23TUBE-DRAIN, W/SEAL RING
24WCI 5303207353
25WCI 215774100
27SCREW-LEVELING, (2)
29AWASHER, .34 X .62 X .05, NYLON
29BWCI 5308000186
30WCI 3206136
32PLUG-BUTTON, ALMOND, CABINET BASE
35WCI 218220102
36218251300 Frigidaire Refrigerator Center Hinge Pin
37WCI 5303321082
38WCI 3206100
39SHIM – UPPER HINGE
40WCI 3206105
42241710601 Frigidaire Refrigerator Screw
44ROLLER ASSY, METAL HOUSING, REAR, (2)
455304455651 Frigidaire Refrigerator Screw
565303001321 Frigidaire Refrigerator Lower Hinge Pin
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
98PLUG-BUTTON, ALMOND, CTR HINGE HOLE
