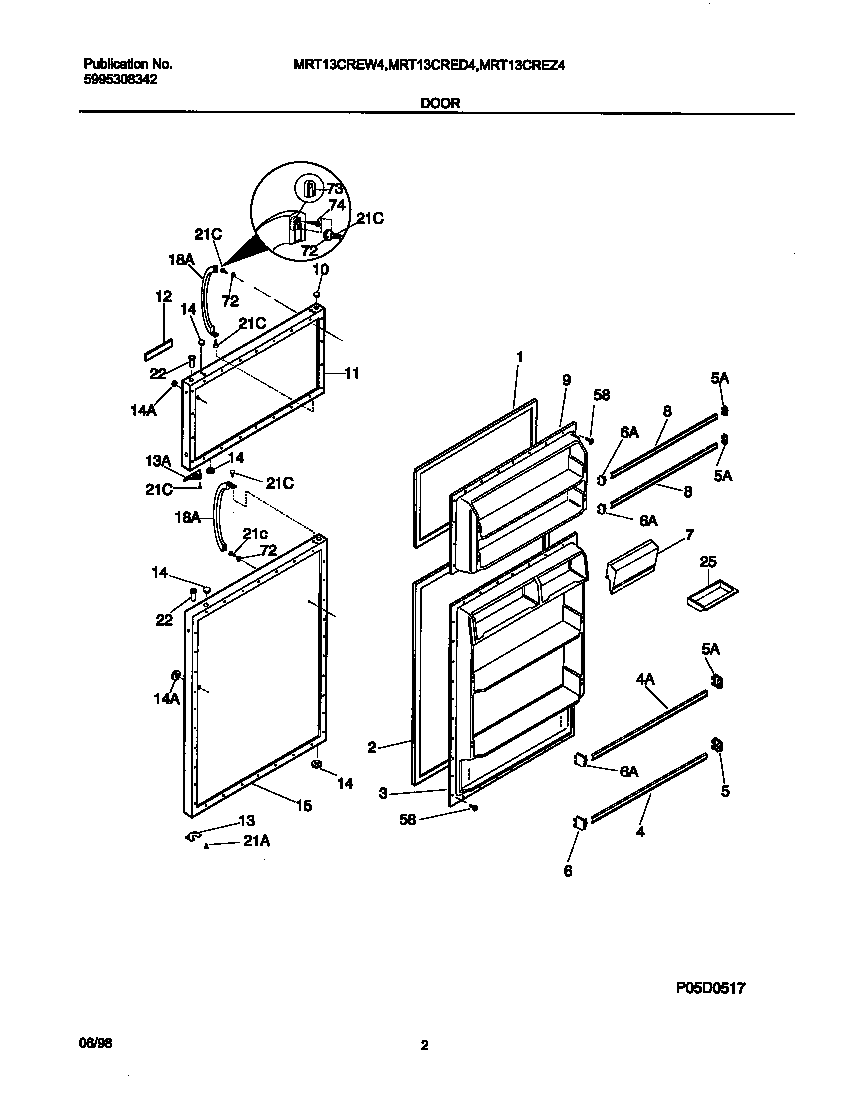

MRT13CREW4 02 – DOOR

MRT13CREW4 02 – DOOR

Written by

in

MRT13CREW4 02 – DOOR

Products

PositionProduct
*01281INSULATION
*01280MAGNET-NAMEPLATE (NOT ILLUSTRATED)
1GASKET-FRZR DOOR, MAGNETIC, WHITE
2WCI 218730601
3PANEL-INNER DOOR, REFR
4RACK-DOOR, 23.16“ X 1.12“
4215366002 Frigidaire Refrigerator Door Wide Rack
53206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
5WCI 5303324320
63206165 Frigidaire Bar Endcap Right Hand
6WCI 5303324302
7DOOR-DAIRY
8RACK-DOOR, 22.59“ X 1.12“
9PANEL-INNER DOOR, FRZR
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303917814
12WCI 218428201
13WCI 218800300
13WCI 218249001
14240494001 Frigidaire Refrigerator Plug Button
15WCI 5303917816
18WHITE DOOR HANDLE
21218252201 Frigidaire Refrigerator Screw
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
22WCI 218519300
255308000716 Frigidaire Refrigerator Dish
58216858001 Frigidaire Refrigerator Screw
72WCI 218397000
73218396700 Frigidaire Door Handle Mounting Block
74215503203 Frigidaire Refrigerator Door Handle Screw
