MRT13CREW4 05 – SYSTEM

MRT13CREW4 05 – SYSTEM

Written by

in

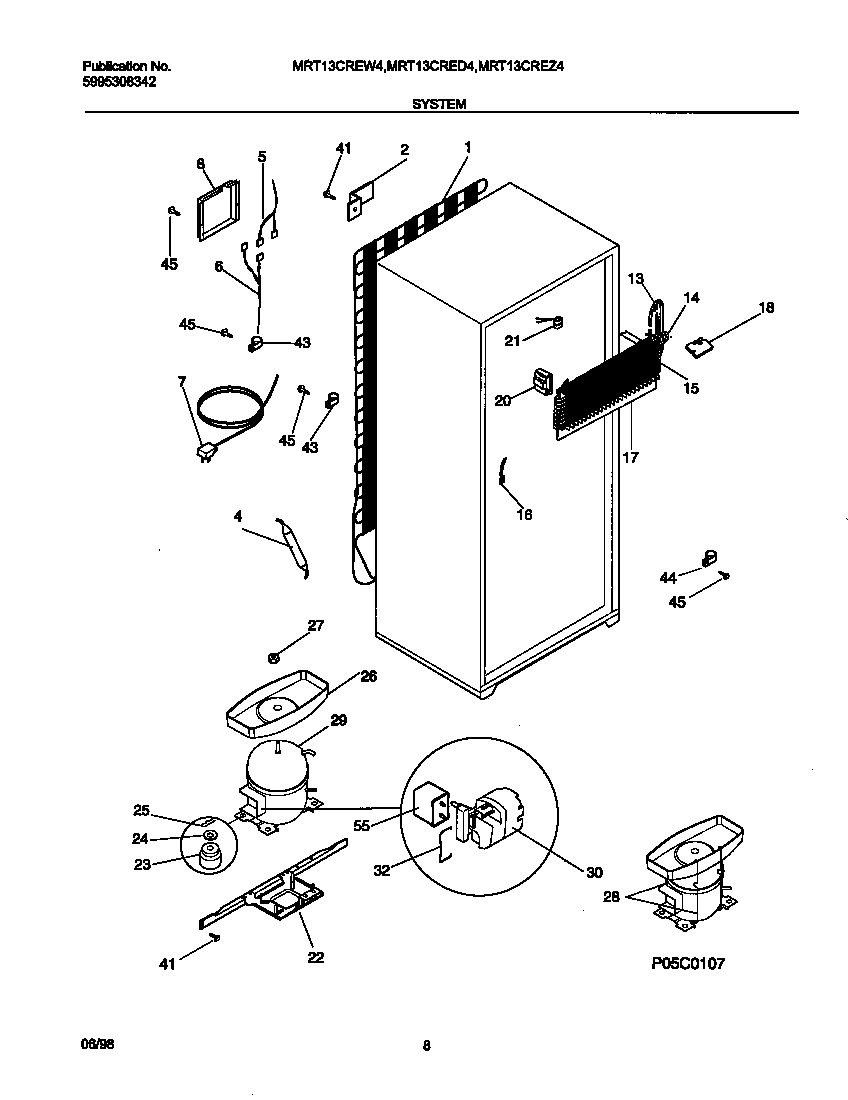

MRT13CREW4 05 – SYSTEM

Products

PositionProduct
*01292WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
*01296WCI 3916557
*01293218843801 Frigidaire Refrigerator Screw
*012955304455852 Frigidaire Refrigerator Screw
*012945303001199 Frigidaire Refrigerator Wiring Harness Clamp
1WCI 5303270924
2BRACKET, MOUNTIN, CONDENSER, (4)
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 218841200
6WCI 215257003
7CORD-ELECTRIC POWER
8WCI 5303001197
13WCI 218429305
14WCI 5304403171
15WCI 218831101
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17INSULATOR-EVAP, PLASTIC
18WCI 218831300
20WCI 218831400
21297216600 Frigidaire Refrigerator Defrost Thermostat
22WCI 218802500
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24WASHER-COMPR MTG
25CLIP – COMPRESSOR MTG
26WCI 215372500
27Nut,lock `1/4-20 ,drain pan mtg
28PAN RETAINER KIT, SERVICE
295304511983 Frigidaire Refrigerator Compressor Assembly Kit
32218740800 Frigidaire Refrigerator Clamp
415308000039 Frigidaire Refrigerator Screw
445308000133 Frigidaire Refrigerator Clamp
455304455651 Frigidaire Refrigerator Screw
555304464438 Frigidaire Compressor Run Capacitor
