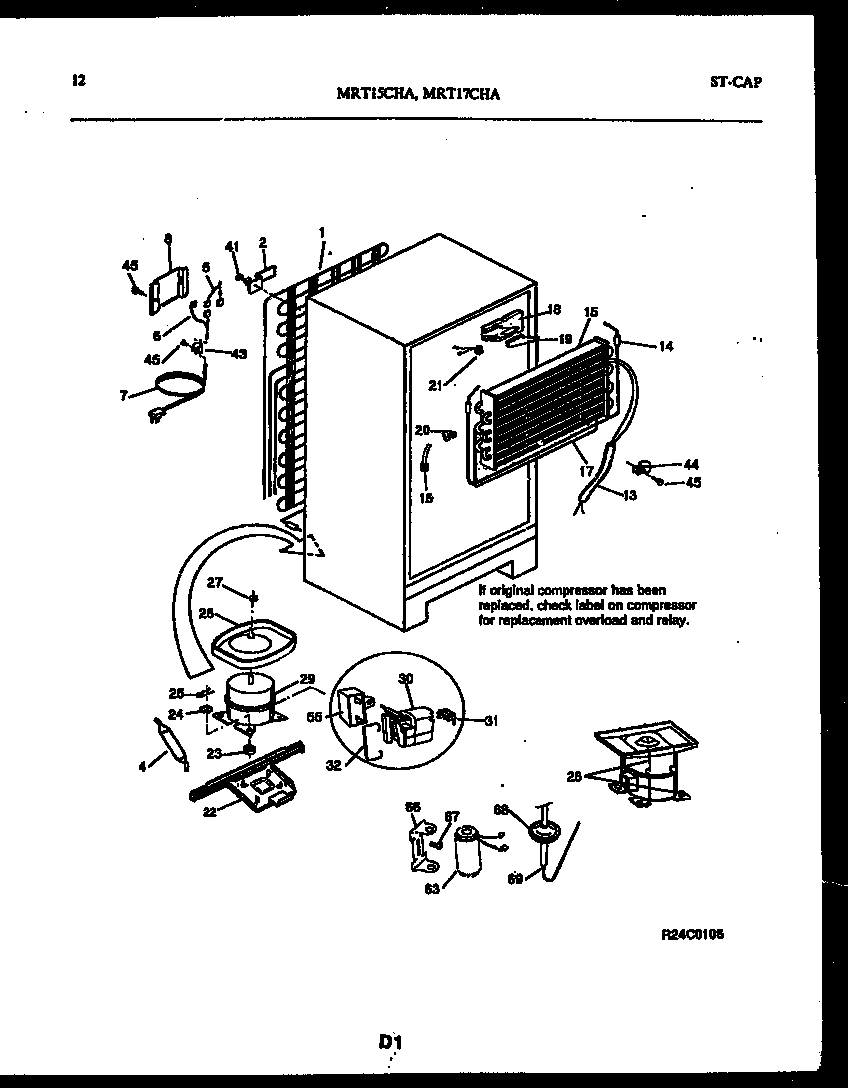

MRT15CHAY0 07 – SYSTEM AND AUTOMATIC DEFROST PARTSadmin2025-04-26T12:23:28+00:00MRT15CHAY0 07 – SYSTEM AND AUTOMATIC DEFROST PARTS
Products
| Position | Product |
|---|
| 1 | WCI 5303001341 |
| 1 | WCI 215301400 |
| 2 | BRACKET, MOUNTIN, CONDENSER, (4) |
| 2 | WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED) |
| 4 | 5303305677 Frigidaire Replacement Filter Dryer Filters |
| 5 | HARNESS-WIRING, CONTROL/DIVIDER (NON-ILLUSTRATED) |
| 5 | WCI 3018900 |
| 6 | WCI 215257002 |
| 7 | CORD-ELECTRIC POWER |
| 8 | WCI 5303001197 |
| 13 | WCI 215133500 |
| 13 | WCI 215257600 |
| 14 | WCI 5308009754 |
| 15 | EVAPORATOR |
| 16 | 5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap |
| 17 | INSULATOR-EVAP, PLASTIC |
| 18 | INSULATION BLOCK, RH |
| 19 | INSULATION PLUG, RH |
| 20 | INSULATION BLOCK, LH |
| 21 | 5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit |
| 22 | 5304500008 Frigidaire Oven Screw |
| 22 | WCI 3206126 |
| 23 | 218513300 Frigidaire Refrigerator Compressor Mount Grommet |
| 24 | WASHER-COMPR MTG |
| 25 | CLIP - COMPRESSOR MTG |
| 26 | PAN-DEFROST DRAIN, ORIG/SVCE COMPR |
| 26 | 5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction |
| 27 | Nut,lock `1/4-20 ,drain pan mtg |
| 28 | PAN RETAINER KIT, SERVICE |
| 29 | WCI 5303917190 |
| 30 | WCI 216008900 |
| 30 | WCI 216008901 |
| 31 | WCI 5303276514 |
