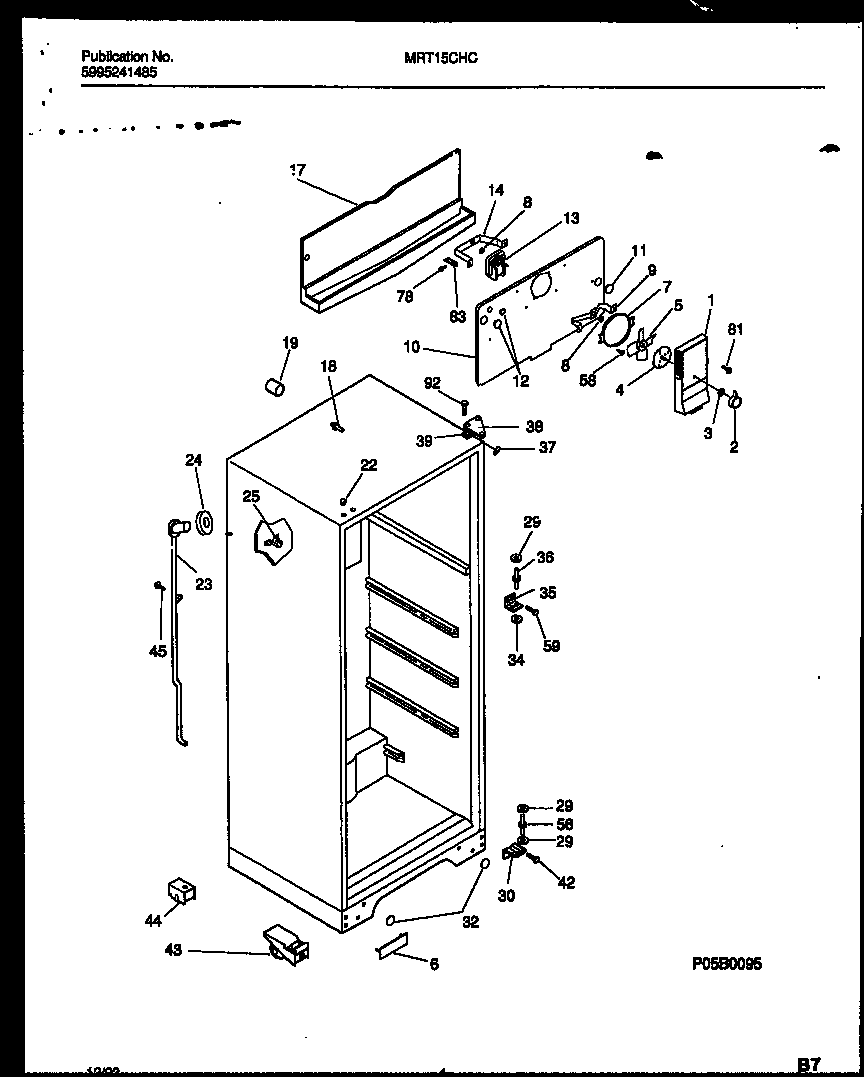

MRT15CHCD0 03 – CABINET PARTS

Products

Position	Product
*90489	PLUG, BUTTON, CABINET LINER (NI)
1	WCI 5303290737
2	WCI 5308000081
3	Nut,push-on
4	WCI 3206110
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	WCI 3206135
7	RING-FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303205118
10	WCI 3206119
11	5303208309 Frigidaire Refrigerator Plug Hole
12	WCI 215079000
12	WCI 215079100
13	5300158289 Frigidaire Evaporator Fan Motor
14	BRACKET-MOTOR MTG, REAR
17	WCI 3206146
18	SUPPORT – EVAP COVER, (2)
19	TUBE-RUBBER
22	WCI 215774911
23	WCI 5303269702
24	WCI 5303207353
25A	WCI 5303001361
25	WCI 5308000056
29	WASHER, .34 X .62 X .05, NYLON
30	WCI 3206136
32	WCI 215217702
34	WCI 5308000186
35	BRACKET-CTR HINGE
36	WCI 5308000184
37	TRIM-CABINET CORNER, ALMOND
38A	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
38	WCI 3206100
39	SHIM – UPPER HINGE
42	241710601 Frigidaire Refrigerator Screw
43E	5304500008 Frigidaire Oven Screw
43	WCI 5300188673
43C	WCI 5308011326
43A	BOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
43D	WCI 5308009760
43B	WCI 5308009790
44	ROLLER ASSY, METAL HOUSING, REAR, (2)
45	5304455651 Frigidaire Refrigerator Screw
56	5303001321 Frigidaire Refrigerator Lower Hinge Pin
59	WCI 5308012258
81	5304455650 Frigidaire Refrigerator Screw
83	WCI 5308000107
