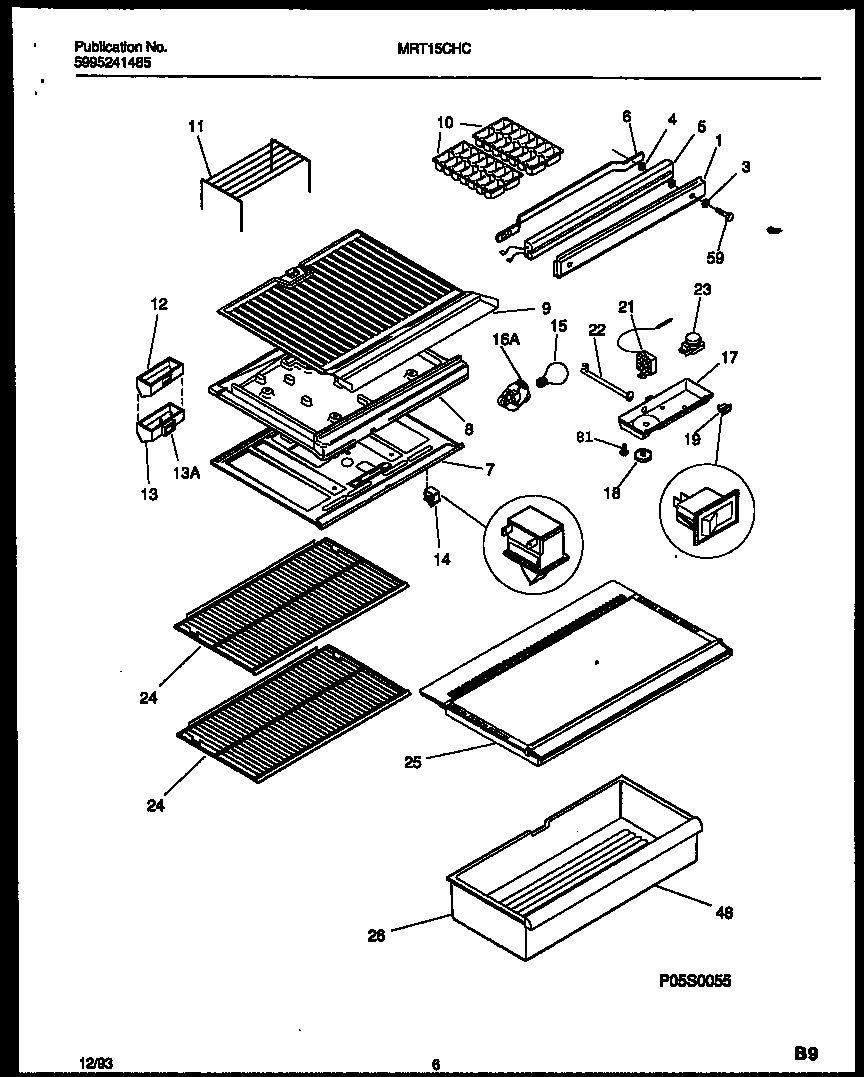

MRT15CHCD0 04 – SHELVES AND SUPPORTS

MRT15CHCD0 04 – SHELVES AND SUPPORTS

Written by

in

MRT15CHCD0 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 3206125
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 3206120
6WCI 215170801
7AWCI 5303001380
7WCI 3206128
8B3205266 Frigidaire Refrigerator Edge Protector
8AHARNESS-WIRING, CONTROL/DIVIDER (NON-ILLUSTRATED)
8WCI 3206131
9WCI 3206132
10215667501 Frigidaire Refrigerator Ice Tray Primary
11SHELF-FREEZER, “TABLE TYPE“
12A5303001449 Frigidaire Refrigerator Seal
12DEFLECTRO, AIR, W/SEAL
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17ANUT, ANCHOR (NI)
17WCI 3206130
18WCI 5303209251
19SWITCH-ENERGY SAVER, SLIDE TYPE
21WCI 5303200810
21AWCI 5303001260
22WCI 3018891
23A5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24SHELF, SLIDING, FULL WIDTH, WIRE, REFR SECTION
25WCI 5303276242
265303285386 Frigidaire Refrigerator Crisper Pan
59WCI 5308012258
815304455650 Frigidaire Refrigerator Screw
