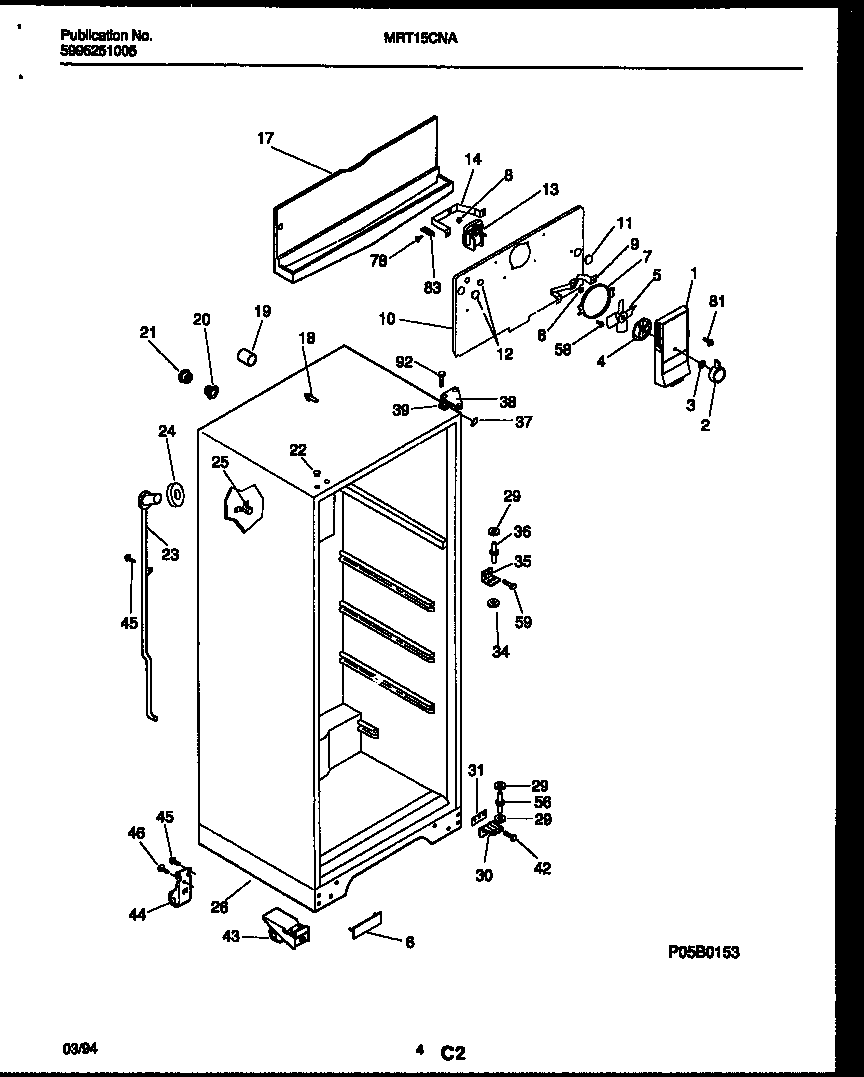

MRT15CNAD0 03 – CABINET PARTS

Products

Position	Product
1	WCI 5303300080
2	WCI 5303299978
3	Nut,push-on
4	DAMPER-FAN COVER
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	COVER-HOLE, LOWER HINGE
7	RING-FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303205118
10	WCI 215560400
11	5303208309 Frigidaire Refrigerator Plug Hole
12	WCI 215079100
12	WCI 215079000
13	5300158289 Frigidaire Evaporator Fan Motor
14	BRACKET-MOTOR MTG, REAR
17	TROUGH-DRAIN
18	SUPPORT – EVAP COVER, (2)
19	TUBE-RUBBER
20	WCI 5303001286
21	WCI 5303001287
22	PLUG-BUTTON, ALMOND, UPR HINGE HOLES
23	WCI 5303210377
24	WCI 5303207353
25	WCI 215774100
26	WCI 5303006086
29	WASHER, .34 X .62 X .05, NYLON
30	WCI 215044100
31	SHIM-LOWER HINGE
34	WASHER, .28 X .62 X .19, NYLON
35	BRACKET-CTR HINGE
36	WCI 5308000184
37	TRIM-CABINET CORNER, ALMOND
38A	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
38	BRACKET-UPPER HINGE
39	SHIM – UPPER HINGE
42	241710601 Frigidaire Refrigerator Screw
43B	BOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
43D	WCI 5308011326
43A	WCI 5308009760
43	WCI 5300188673
43C	WCI 5308009790
44	WCI 5308009773
45	5304455651 Frigidaire Refrigerator Screw
46	BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
56	5303001321 Frigidaire Refrigerator Lower Hinge Pin
