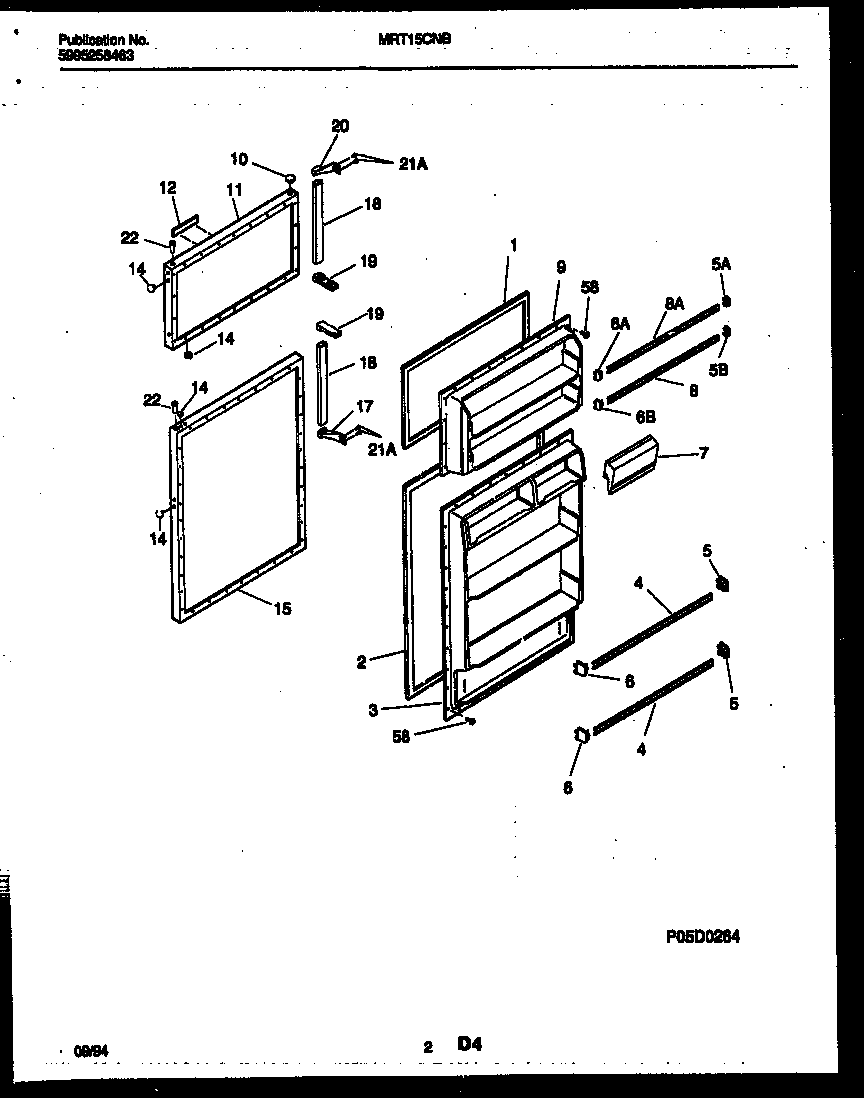

MRT15CNBW1 02 – DOOR PARTS

Products

Position	Product
*11160	INSULATION
1	GASKET-FRZR DOOR, MAGNETIC, WHITE
2	218730603 Frigidaire Door Gasket
3	WCI 5303281227
4	215366002 Frigidaire Refrigerator Door Wide Rack
5A	3206165 Frigidaire Bar Endcap Right Hand
5	WCI 3206150
5B	SUPPORT-DOOR RACK, EXTENDS 1.06``, RH
6B	SUPPORT-DOOR RACK, EXTENDS 1.06``, LH
6A	3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
6	WCI 3206151
7	DOOR-DAIRY
8A	RACK-DOOR, 22.59`` X 1.12``
9	WCI 5303276517
10	PLUG-BUTTON, WHITE, HINGE BRG HOLE
11	WCI 5303917457
12	WCI 215503701
12B	TAPE, ADHESIVE, 60`` LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
12A	TAPE, ADHESIVE, 12`` LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
14	PLUG-BUTTON, ALMOND, HANDLE/DR STOP
14	240494001 Frigidaire Refrigerator Plug Button
15	WCI 5303917453
17	HANDLE END
18	WCI 5303302990
19	WCI 218217401
20	HANDLE END
21A	SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
22	BEARING-HINGE
58	5304455651 Frigidaire Refrigerator Screw
