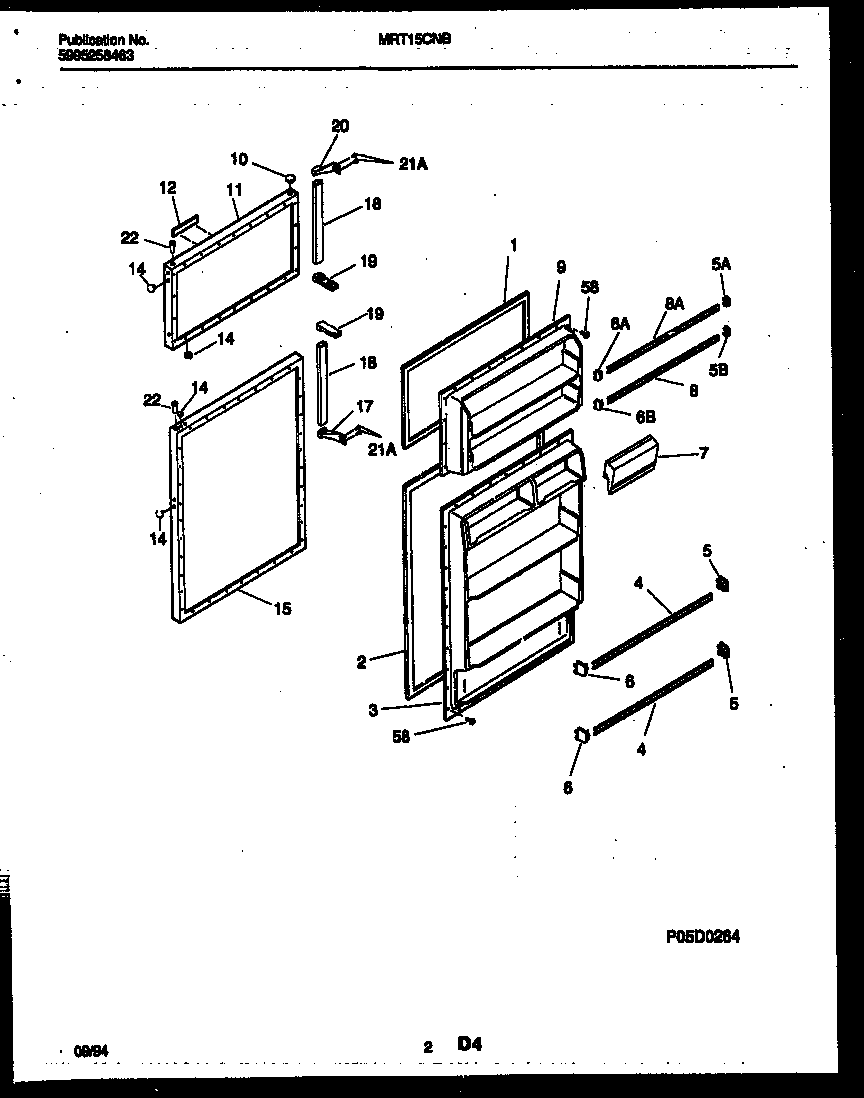

MRT15CNBY1 02 – DOOR PARTSadmin2025-04-26T12:21:20+00:00MRT15CNBY1 02 – DOOR PARTS
Products
| Position | Product |
|---|
| *11160 | INSULATION |
| 1 | WCI 215608901 |
| 2 | 218730603 Frigidaire Door Gasket |
| 3 | WCI 5303281227 |
| 4 | 215366002 Frigidaire Refrigerator Door Wide Rack |
| 5B | SUPPORT-DOOR RACK, EXTENDS 1.06``, RH |
| 5A | 3206165 Frigidaire Bar Endcap Right Hand |
| 5 | WCI 3206150 |
| 6 | WCI 3206151 |
| 6A | 3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support |
| 6B | SUPPORT-DOOR RACK, EXTENDS 1.06``, LH |
| 7 | DOOR-DAIRY |
| 8A | RACK-DOOR, 22.59`` X 1.12`` |
| 9 | WCI 5303276517 |
| 10 | PLUG-BUTTON, ALMOND, HINGE BRG HOLE |
| 11 | WCI 5303917458 |
| 12 | WCI 215503711 |
| 12B | TAPE, ADHESIVE, 60`` LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC |
| 12A | TAPE, ADHESIVE, 12`` LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED) |
| 14 | 240494001 Frigidaire Refrigerator Plug Button |
| 14 | PLUG-BUTTON, ALMOND, HANDLE/DR STOP |
| 15 | WCI 5303917454 |
| 17 | HANDLE END |
| 18 | WCI 5303302991 |
| 19 | WCI 218217401 |
| 20 | HANDLE END |
| 21A | SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED |
| 22 | BEARING-HINGE |
| 58 | 5304455651 Frigidaire Refrigerator Screw |
