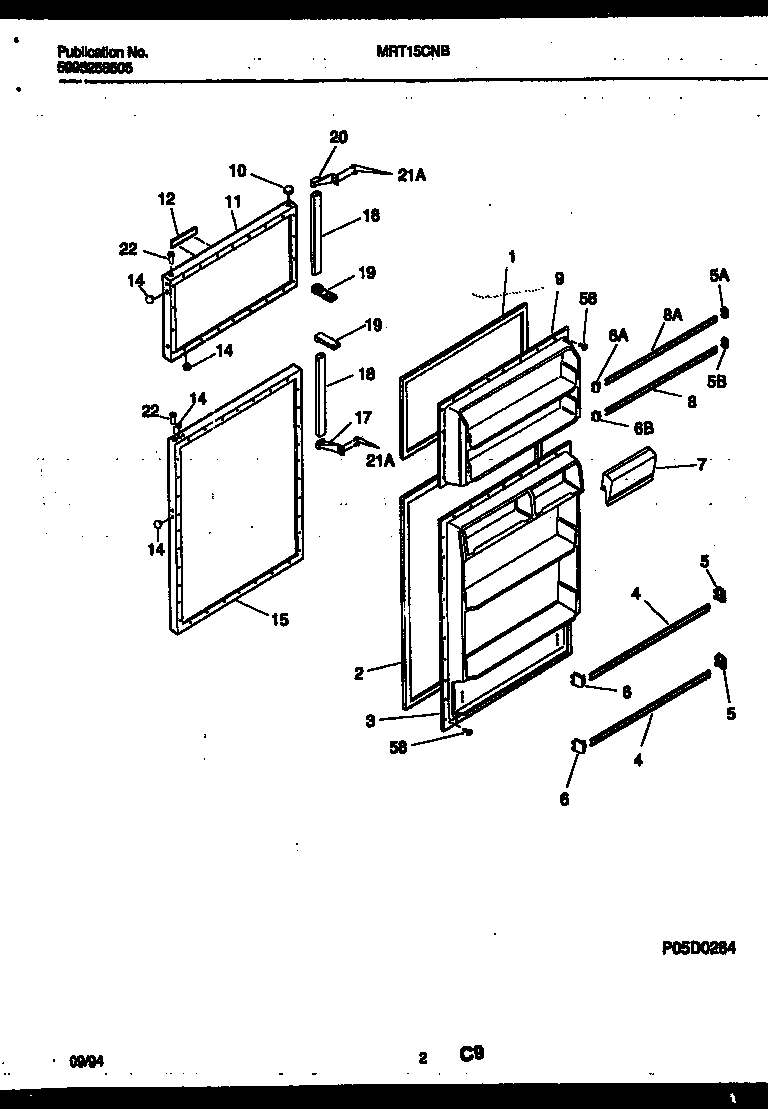

MRT15CNBZ2 02 – DOOR PARTS

MRT15CNBZ2 02 – DOOR PARTS

Written by

in

MRT15CNBZ2 02 – DOOR PARTS

Products

PositionProduct
*11153INSULATION
1GASKET-FRZR DOOR, MAGNETIC, WHITE
2218730603 Frigidaire Door Gasket
3WCI 5303281227
4215366002 Frigidaire Refrigerator Door Wide Rack
5BSUPPORT-DOOR RACK, EXTENDS 1.06“, RH
5WCI 3206150
5A3206165 Frigidaire Bar Endcap Right Hand
6BSUPPORT-DOOR RACK, EXTENDS 1.06“, LH
6A3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
6WCI 3206151
7DOOR-DAIRY
8ARACK-DOOR, 22.59“ X 1.12“
9WCI 5303276517
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303917457
12WCI 215503701
12BTAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
12ATAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
14240494001 Frigidaire Refrigerator Plug Button
15WCI 5303917453
17HANDLE END
18WCI 5303302990
19WCI 218217401
20HANDLE END
21ASCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
22BEARING-HINGE
585304455651 Frigidaire Refrigerator Screw
