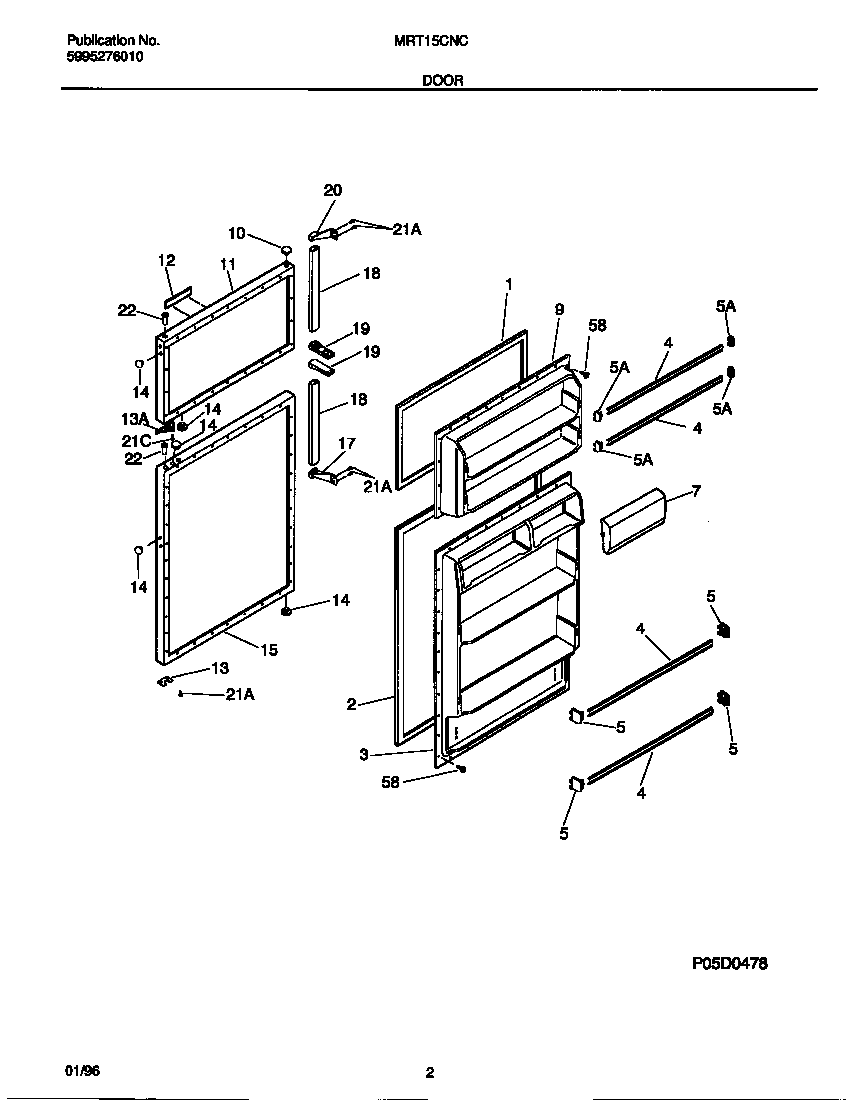

MRT15CNCD1 02 – DOOR

MRT15CNCD1 02 – DOOR

Written by

in

MRT15CNCD1 02 – DOOR

Products

PositionProduct
*17840INSULATION
1WCI 215608901
2218730603 Frigidaire Door Gasket
3WCI 218460801
4215366002 Frigidaire Refrigerator Door Wide Rack
5215473602 Frigidaire Refrigerator White Left or Right Door Shelf End Cap
5215267701 Frigidaire Refrigerator White Door Shelf Endcap Left or Right
7DOOR-DAIRY
9WCI 218460701
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917754
12WCI 215503711
13WCI 218249002
13WCI 5308000255
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15WCI 5303917756
17HANDLE END
18WCI 5303302991
19WCI 218217401
20HANDLE END
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
21218252201 Frigidaire Refrigerator Screw
22BEARING-HINGE
585304455651 Frigidaire Refrigerator Screw
