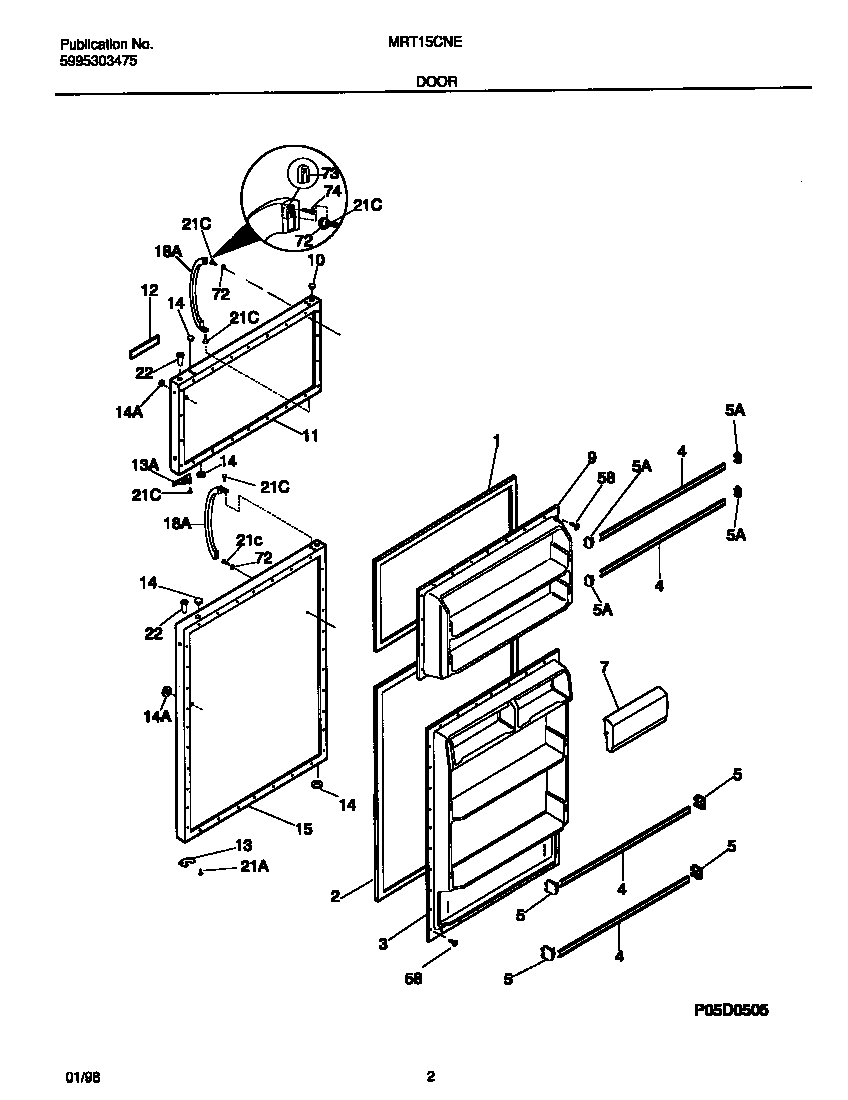

MRT15CNEW4 02 – DOORS

Products

PositionProduct
*87760MAGNET-NAMEPLATE (NOT ILLUSTRATED)
*87761INSULATION
1GASKET-FRZR DOOR, ALMOND, MAGNETIC
1GASKET-FRZR DOOR, WHITE, MAGNETIC
2218730603 Frigidaire Door Gasket
3WCI 218359001
4215366002 Frigidaire Refrigerator Door Wide Rack
5215267701 Frigidaire Refrigerator White Door Shelf Endcap Left or Right
5215473602 Frigidaire Refrigerator White Left or Right Door Shelf End Cap
7DOOR-DAIRY
9WCI 218358801
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917802
11WCI 5303917804
12WCI 218428202
12WCI 218428201
13WCI 218249001
13DOOR STOP, REFR SECTION
13WCI 218249002
14WCI 215352211
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
14240494001 Frigidaire Refrigerator Plug Button
15WCI 5303917803
15WCI 5303917801
18WCI 218428102
18WHITE DOOR HANDLE
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
21218252201 Frigidaire Refrigerator Screw
22WCI 218519300
58Screw,No.10 pan hd ,8-18 x .5
72WCI 218397000
73218396700 Frigidaire Door Handle Mounting Block
74215503203 Frigidaire Refrigerator Door Handle Screw
