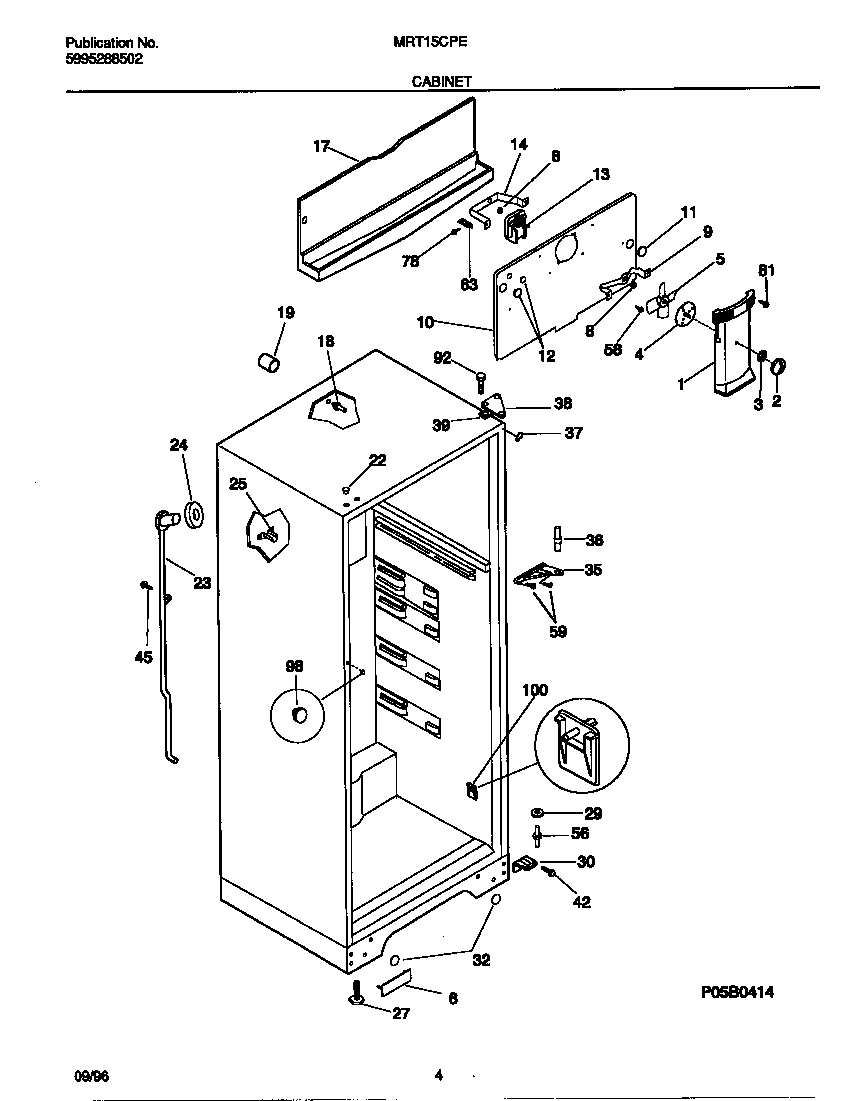

MRT15CPEW1 03 – CABINET

Products

Position	Product
*93121	SKID PAD, REAR CAB BASE (NI)
*93122	PLUG, BUTTON, CABINET LINER (NI)
*93123	5303321319 Frigidaire Refrigerator White Touch Up Paint
1	WCI 5303307350
2	WCI 5303307351
3	Nut,push-on
4	WCI 3206110
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	WCI 218448301
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303205118
10	WCI 3206119
10	NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
11	5303208309 Frigidaire Refrigerator Plug Hole
12	WCI 215079100
12	WCI 215079000
13	5300158289 Frigidaire Evaporator Fan Motor
14	BRACKET-MOTOR MTG, REAR
17	WCI 218725600
18	SUPPORT – EVAP COVER, (2)
19	TUBE-RUBBER
22	215774901 Frigidaire Refrigerator Button Plug
23	WCI 5303269702
24	WCI 5303207353
25	WCI 215774100
27	SCREW-LEVELING, (2)
29	WASHER, .34 X .62 X .05, NYLON
29	WCI 5308011326
30	WCI 3206136
30	SHIM, LOWER HINGE (NI)
30	TAPPING PLATE, LOWER HINGE, (2) (NI)
32	PLUG-BUTTON, WHITE, CABINET BASE
35	BRACKET-CTR HINGE, LIGHT GREY
36	218251300 Frigidaire Refrigerator Center Hinge Pin
37	WCI 5303321081
38	WCI 3206100
39	SHIM – UPPER HINGE
42	241710601 Frigidaire Refrigerator Screw
45	5304455651 Frigidaire Refrigerator Screw
56	5303001321 Frigidaire Refrigerator Lower Hinge Pin
59	240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
81	5304455650 Frigidaire Refrigerator Screw
83	WCI 5308000107
98	215099701 Frigidaire Refrigerator Button Plug
100	SUPPORT-PAN COVER
