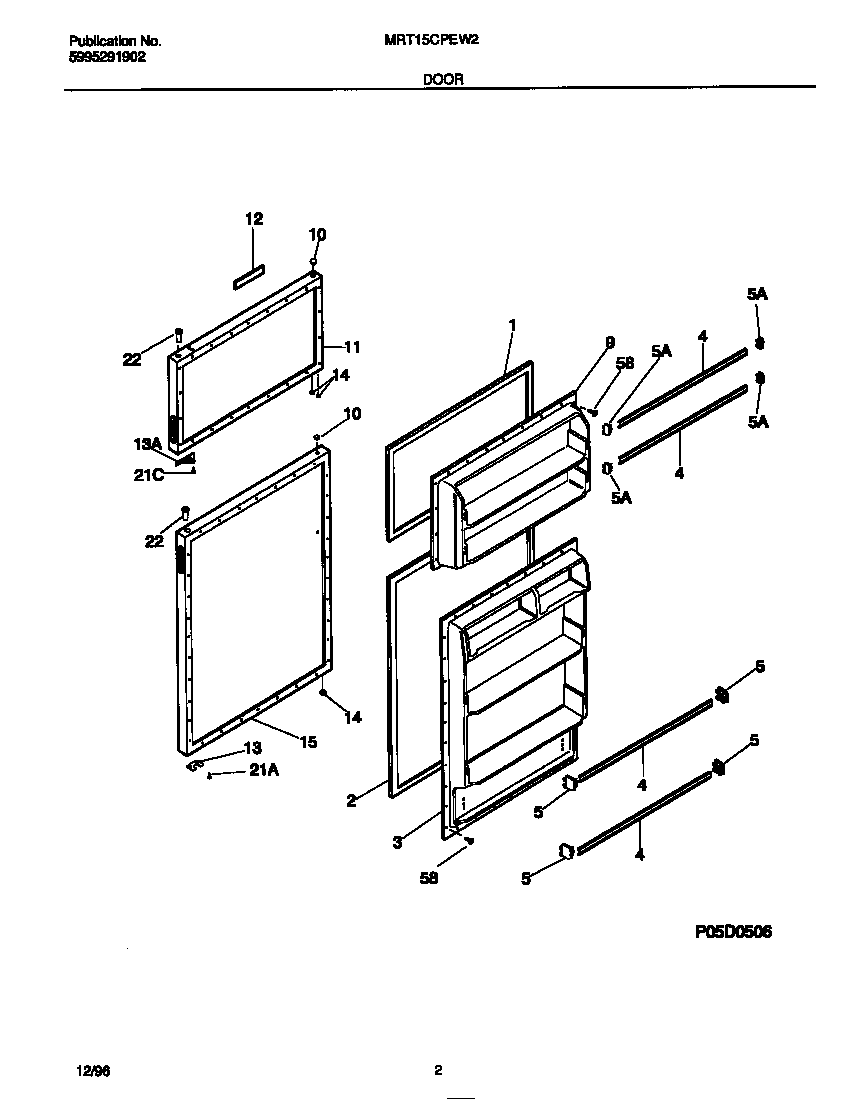

MRT15CPEW2 02 – DOOR

MRT15CPEW2 02 – DOOR

Written by

in

MRT15CPEW2 02 – DOOR

Products

PositionProduct
*40280INSULATION
1GASKET-FRZR DOOR, WHITE, MAGNETIC
2218730603 Frigidaire Door Gasket
3WCI 218359003
4215366002 Frigidaire Refrigerator Door Wide Rack
5215473602 Frigidaire Refrigerator White Left or Right Door Shelf End Cap
5215267701 Frigidaire Refrigerator White Door Shelf Endcap Left or Right
9WCI 218358801
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11PANEL-FRZR DOOR, WHITE, WITH HANDLES, AND INSULATION
12TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
12WCI 218504703
12MAGNET-NAMEPLATE (NOT ILLUSTRATED)
13WCI 218249001
13DOOR STOP, REFR SECTION
14240494001 Frigidaire Refrigerator Plug Button
15WCI 218615801
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
21218252201 Frigidaire Refrigerator Screw
22WCI 218519300
58216858001 Frigidaire Refrigerator Screw
