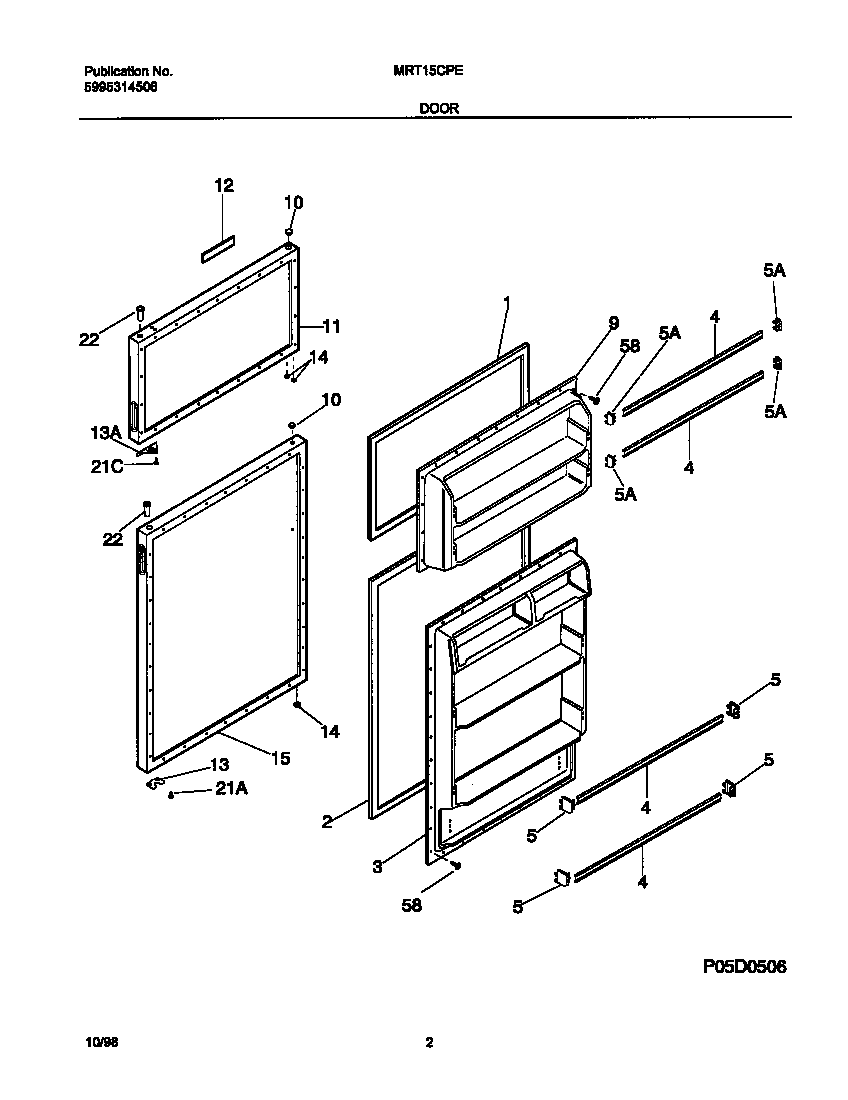

MRT15CPEW6 02 – DOOR

MRT15CPEW6 02 – DOOR

Written by

in

MRT15CPEW6 02 – DOOR

Products

PositionProduct
*08080MAGNET-NAMEPLATE (NOT ILLUSTRATED)
*080845304455651 Frigidaire Refrigerator Screw
*08083INSULATION
*08081TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
*08082TAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
1GASKET-FRZR DOOR, WHITE, MAGNETIC
2218730603 Frigidaire Door Gasket
3WCI 218359003
4215366002 Frigidaire Refrigerator Door Wide Rack
5215267701 Frigidaire Refrigerator White Door Shelf Endcap Left or Right
5215473602 Frigidaire Refrigerator White Left or Right Door Shelf End Cap
9WCI 218358801
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303917899
12WCI 218504703
13WCI 218249001
13WCI 218800300
14240494001 Frigidaire Refrigerator Plug Button
15WCI 5303917901
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
21218252201 Frigidaire Refrigerator Screw
22WCI 218519300
58Screw,No.10 pan hd ,8-18 x .5
