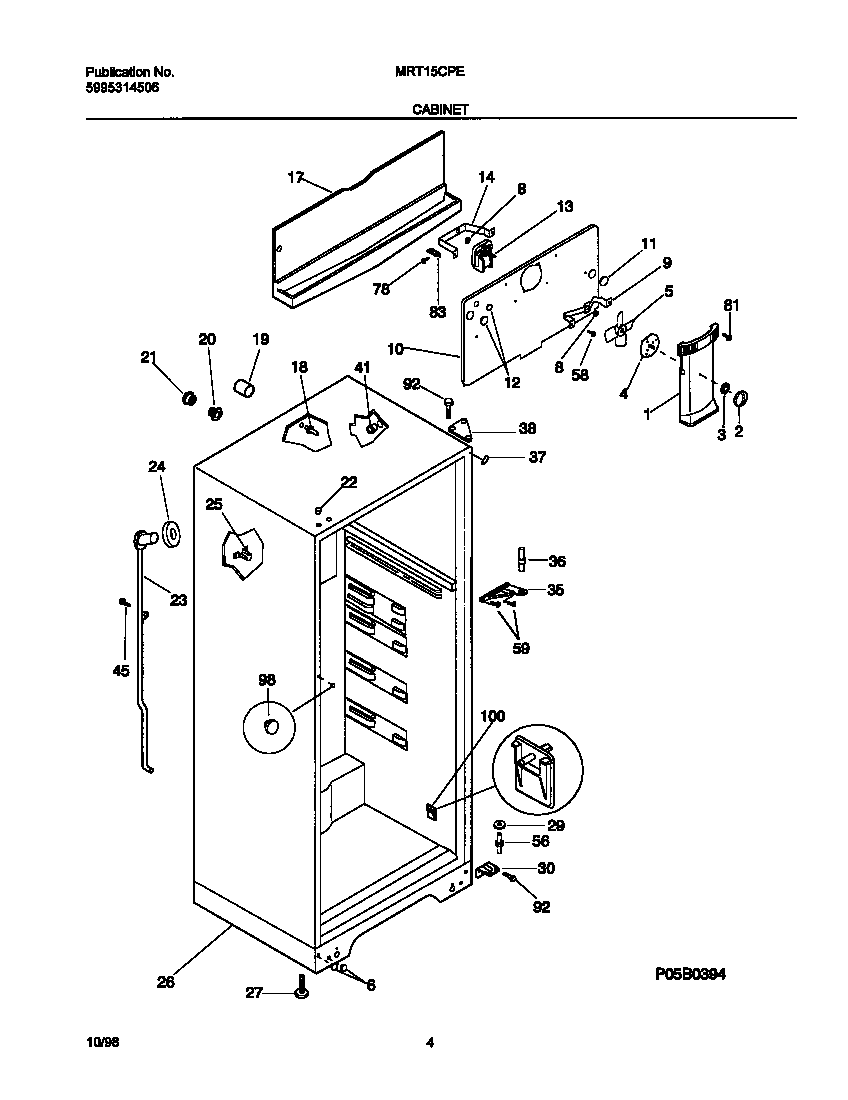

MRT15CPEW6 03 – CABINET

MRT15CPEW6 03 – CABINET

Written by

in

MRT15CPEW6 03 – CABINET

Products

PositionProduct
*080895304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*08091WCI 218659600
*08085WCI 218605200
*08093COVER-SOUND INSUL,PRESSBOARD/FOAM ,MACHINE COMPT
*08090WCI 218601201
*080925303321319 Frigidaire Refrigerator White Touch Up Paint
*08088NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*08094PLUG, BUTTON, CABINET LINER (NI)
*08086WCI 218605300
*08087TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
1WCI 218672501
2WCI 5303307351
3Nut,push-on
4WCI 218722200
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
6PLUG-BUTTON, WHITE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10WCI 218829701
115303208309 Frigidaire Refrigerator Plug Hole
12BWCI 215079100
12AWCI 215079000
135300158289 Frigidaire Evaporator Fan Motor
14WCI 5303322992
17WCI 218725602
18SUPPORT – EVAP COVER, (2)
19TUBE-RUBBER
20WCI 5303001286
21WCI 5303001287
22215774901 Frigidaire Refrigerator Button Plug
23WCI 5303210377
24WCI 5303207353
25WCI 215774100
26WCI 218605001
27Screw-leveling,(2)
29AWCI 218666700
29BWASHER,NYLON ,0.245 ID W/NIBS
29CWCI 5308011326
30WCI 218220200
35BRACKET-CTR HINGE, LIGHT GREY
36218251300 Frigidaire Refrigerator Center Hinge Pin
37ATRIM-CABINET CORNER, WHITE
37BWCI 5303321081
38WCI 3206100
415304509705 Frigidaire Refrigerator Grommet
45B5304455651 Frigidaire Refrigerator Screw
45ASCREW,HEX HD SER WSHR ,8-18 X 0.375
565303001321 Frigidaire Refrigerator Lower Hinge Pin
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
92241710601 Frigidaire Refrigerator Screw
98215099701 Frigidaire Refrigerator Button Plug
100SUPPORT-PAN COVER
