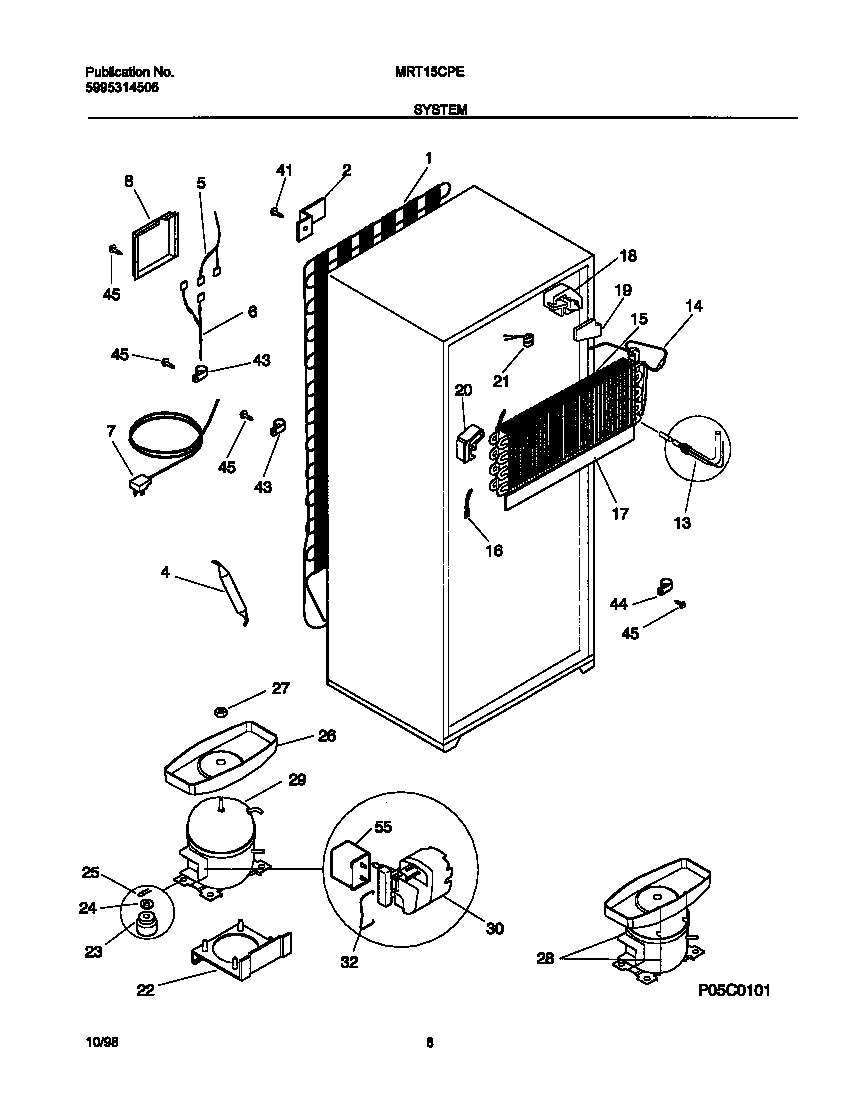

MRT15CPEW6 05 – SYSTEM

MRT15CPEW6 05 – SYSTEM

Written by

in

MRT15CPEW6 05 – SYSTEM

Products

PositionProduct
*08111HOT TUBE REPAIR KIT-SERVICE
*08110WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
*081075303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
*081045303017691 Frigidaire Refrigerator Spacer-Tube
*08106WASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILLUSTRATED)
*08105WCI 5304406721
*081085304455852 Frigidaire Refrigerator Screw
*08109COVER-SOUND INSUL,PRESSBOARD/FOAM ,MACHINE COMPT
1WCI 218491000
2BRACKET, MOUNTIN, CONDENSER, (4)
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 3018900
6WCI 215257001
7CORD-ELECTRIC POWER
8WCI 5303001197
13WCI 215076403
14WCI 5308009754
15WCI 218818701
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17INSULATOR-EVAP, PLASTIC
18WCI 218821301
19INSULATION PLUG, RH
20WCI 218821201
21297216600 Frigidaire Refrigerator Defrost Thermostat
22WCI 5308013663
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24WASHER-COMPR MTG
25CLIP – COMPRESSOR MTG
26WCI 215372500
27Nut,lock `1/4-20 ,drain pan mtg
28PAN RETAINER KIT, SERVICE
295304478809 Frigidaire Refrigerator Compressor Assembly
30WCI 218721101
32218740800 Frigidaire Refrigerator Clamp
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
445308000133 Frigidaire Refrigerator Clamp
45ASCREW,HEX HD SER WSHR ,8-18 X 0.375
45B5304455651 Frigidaire Refrigerator Screw
555304464438 Frigidaire Compressor Run Capacitor
