MRT15CSCY0 02 – DOOR

MRT15CSCY0 02 – DOOR

Written by

in

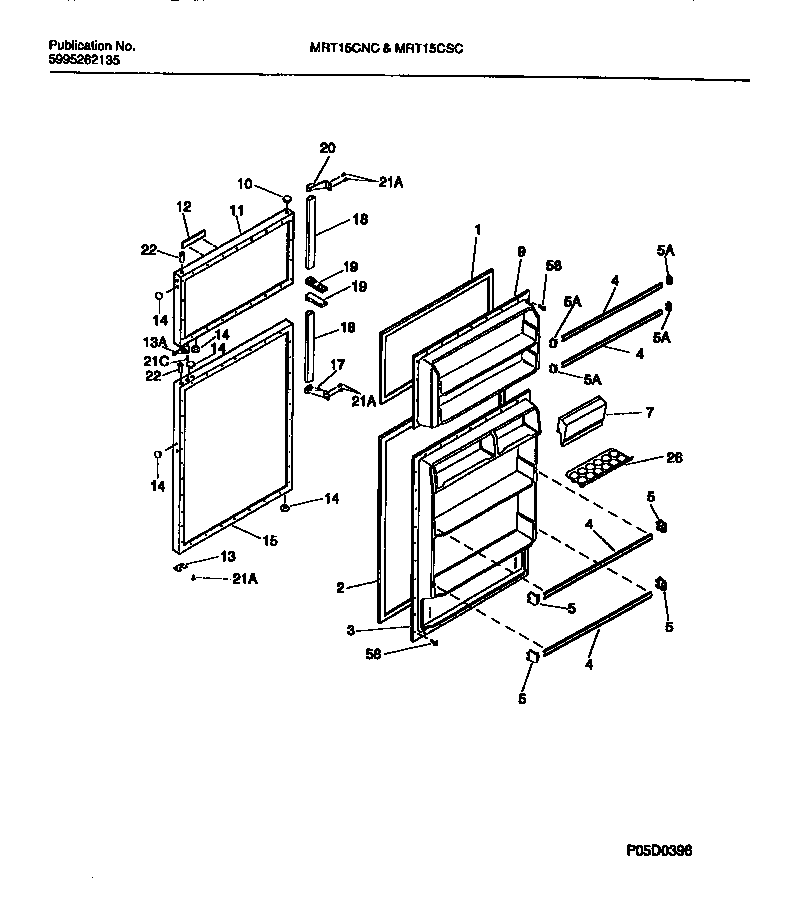

MRT15CSCY0 02 – DOOR

Products

PositionProduct
*50000INSULATION
1WCI 215608901
2218730603 Frigidaire Door Gasket
3WCI 218359001
4215366002 Frigidaire Refrigerator Door Wide Rack
5A215473602 Frigidaire Refrigerator White Left or Right Door Shelf End Cap
5215267701 Frigidaire Refrigerator White Door Shelf Endcap Left or Right
7DOOR-DAIRY
9WCI 218358801
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917484
12WCI 215366311
12ATAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
13AWCI 218249002
13DOOR STOP, REFR SECTION
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15WCI 5303917486
17HANDLE END
18WCI 5303302991
19WCI 218217401
20HANDLE END
21CWCI 21852200
21AWCI 5308011745
22BEARING-HINGE
26215817806 Frigidaire Refrigerator Egg Tray
585304455651 Frigidaire Refrigerator Screw
