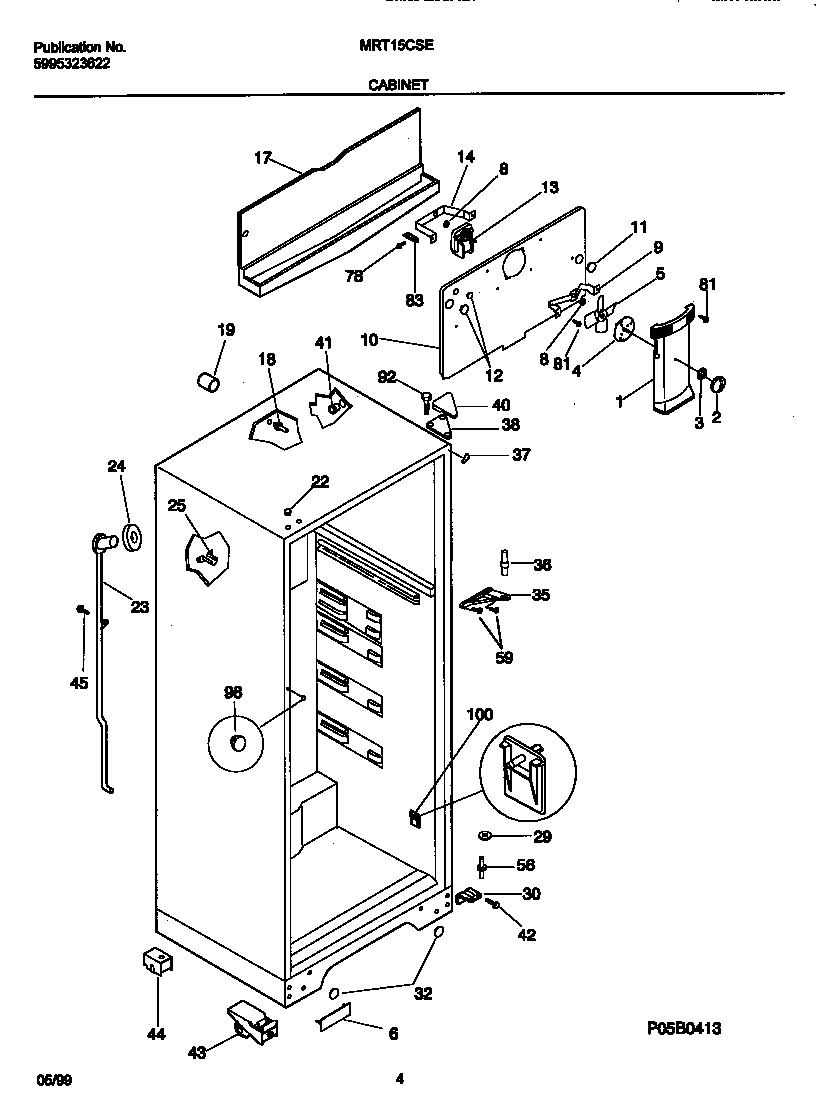

MRT15CSEDN 03 – CABINET

Products

PositionProduct
*78764SHIM, LOWER HINGE (NI)
*78768BOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
*78769WCI 5308009790
*78770TOUCH, UP PAINT, ALMOND (NI)
*78772PLUG, BUTTON, CABINET LINER (NI)
*78767WCI 5308000186
*78766WCI 218703002
*78763TAPPING PLATE, LOWER HINGE, (2) (NI)
*78762NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*787655304500407 Frigidaire Refrigerator Shelf Mounting Grommet
1WCI 218672501
2WCI 5303307351
3Nut,push-on
4WCI 218722200
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
6WCI 218448302
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10WCI 218832002
115303208309 Frigidaire Refrigerator Plug Hole
12AWCI 215079000
12BWCI 215079100
135300158289 Frigidaire Evaporator Fan Motor
14BRACKET-MOTOR MTG, REAR
17WCI 218725601
18WCI 218865000
19TUBE-RUBBER
22WCI 215774911
23WCI 5303269702
24WCI 5303207353
25WCI 215774100
29WASHER, .34 X .62 X .05, NYLON
30WCI 5304409595
32PLUG-BUTTON, ALMOND, CABINET BASE
35WCI 218220102
36218251300 Frigidaire Refrigerator Center Hinge Pin
37WCI 5303321082
38WCI 3206100
40WCI 3206105
415304509705 Frigidaire Refrigerator Grommet
42241710601 Frigidaire Refrigerator Screw
43WCI 218724000
44ROLLER ASSY, METAL HOUSING, REAR, (2)
455304455651 Frigidaire Refrigerator Screw
565303001321 Frigidaire Refrigerator Lower Hinge Pin
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
98PLUG-BUTTON, ALMOND, CTR HINGE HOLE
100SUPPORT-PAN COVER
