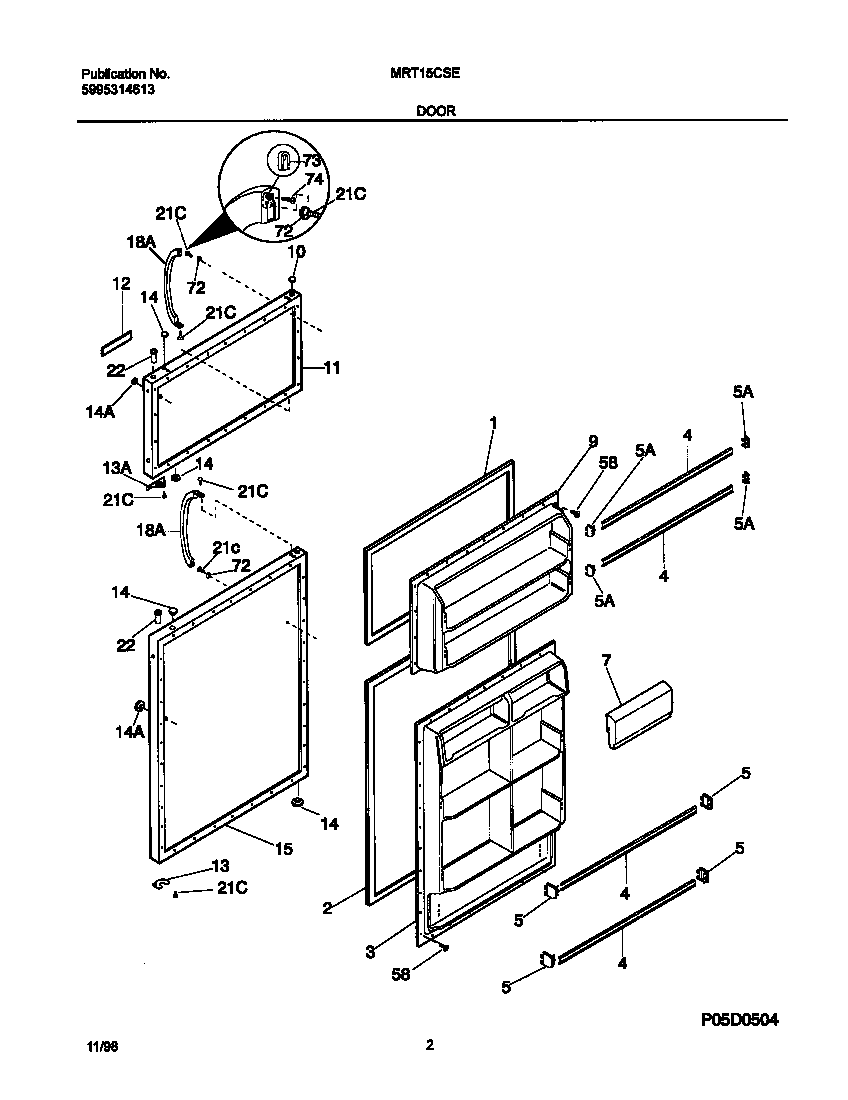

MRT15CSEZ8 02 – DOOR

MRT15CSEZ8 02 – DOOR

Written by

in

MRT15CSEZ8 02 – DOOR

Products

PositionProduct
*17121INSULATION
*17120MAGNET-NAMEPLATE (NOT ILLUSTRATED)
1GASKET-FRZR DOOR, WHITE, MAGNETIC
2218730603 Frigidaire Door Gasket
3WCI 218359001
4215366002 Frigidaire Refrigerator Door Wide Rack
5215473602 Frigidaire Refrigerator White Left or Right Door Shelf End Cap
5215267701 Frigidaire Refrigerator White Door Shelf Endcap Left or Right
7DOOR-DAIRY
9WCI 218358801
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303917802
12WCI 218428201
13WCI 218249001
13WCI 218800300
14240494001 Frigidaire Refrigerator Plug Button
15WCI 5303917801
18WHITE DOOR HANDLE
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
21218252201 Frigidaire Refrigerator Screw
22WCI 218519300
58Screw,No.10 pan hd ,8-18 x .5
72WCI 218397000
73218396700 Frigidaire Door Handle Mounting Block
74215503203 Frigidaire Refrigerator Door Handle Screw
