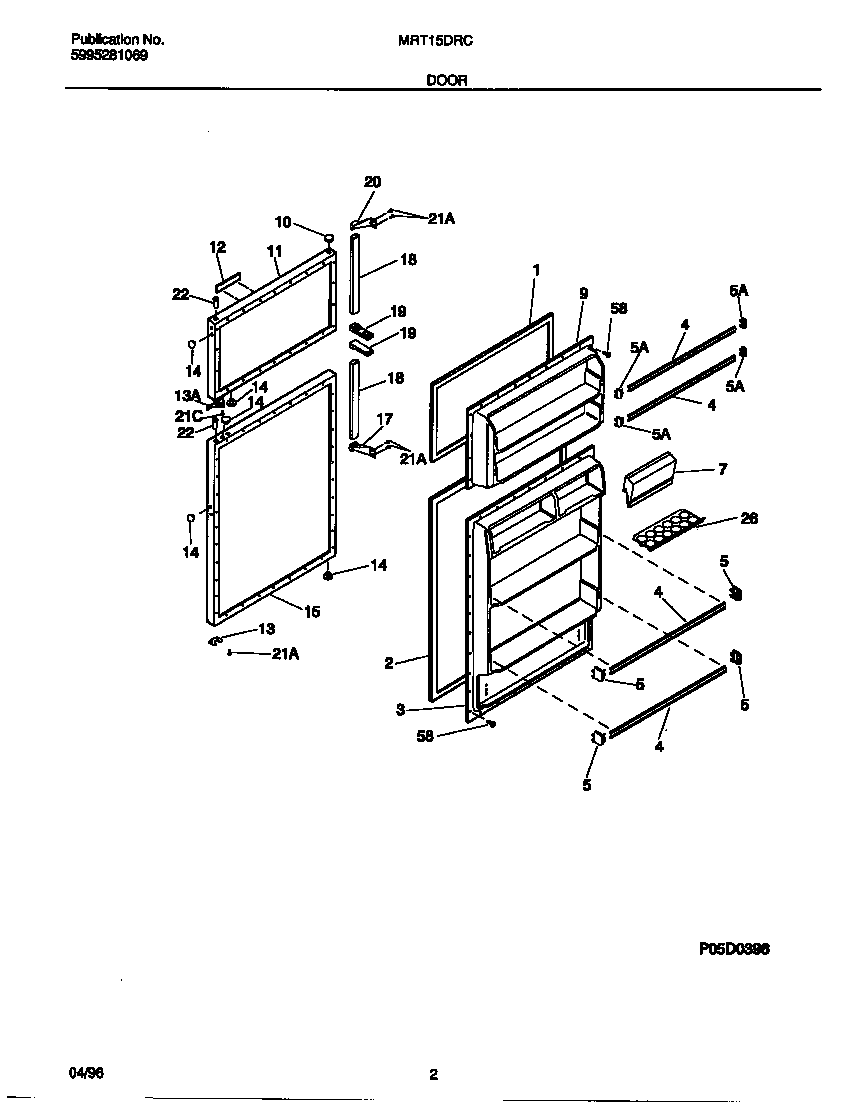

MRT15DRCD4 02 – DOOR

Products

PositionProduct
*26480INSULATION
1WCI 215608901
2218730603 Frigidaire Door Gasket
3WCI 218359001
4215366002 Frigidaire Refrigerator Door Wide Rack
5215267701 Frigidaire Refrigerator White Door Shelf Endcap Left or Right
5215473602 Frigidaire Refrigerator White Left or Right Door Shelf End Cap
7BWCI 5303001380
7AWCI 218287802
9WCI 218358801
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917484
12WCI 215503711
12TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
12WCI 215366311
13DOOR STOP, REFR SECTION
13WCI 218249002
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15WCI 5303917486
17HANDLE END
18WCI 5303302991
19WCI 218217401
20HANDLE END
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
21218252201 Frigidaire Refrigerator Screw
22WCI 218519300
26215817806 Frigidaire Refrigerator Egg Tray
58216858001 Frigidaire Refrigerator Screw
