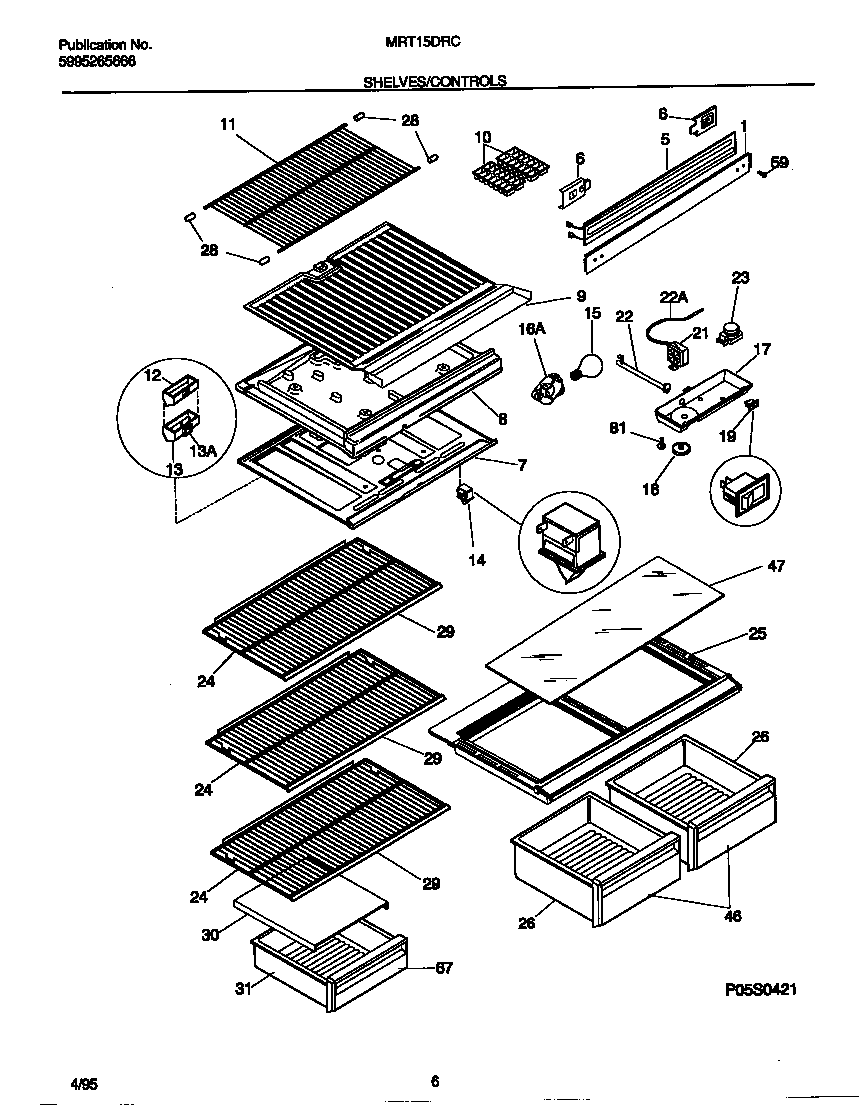

MRT15DRCY0 04 – SHELVES/CONTROLS

Products

Position	Product
1	WCI 218252502
5	WCI 218271401
6	WCI 218279800
7B	WCI 5303001380
7A	WCI 3206185
8A	WCI 3206186
8C	3205266 Frigidaire Refrigerator Edge Protector
8B	WCI 3018900
9	WCI 3206187
10	215667501 Frigidaire Refrigerator Ice Tray Primary
11A	SHELF-FREEZER, FIXED/FLAT, FULL WIDTH, WIRE
11B	SPACER, FRZR SHELF (NOT ILLUSTRATED)
12B	5303001449 Frigidaire Refrigerator Seal
12A	DEFLECTRO, AIR, W/SEAL
13	EXTENSION, AIR DEFLECTOR, WITH INSULATION
13	WCI 5303001448
14	5309918806 Frigidaire Refrigerator Light Switch Door
15	316538904 Frigidaire Oven Lamp Light
16	218906802 Frigidaire Light Lamp Socket
17B	NUT, ANCHOR (NI)
17A	WCI 5303307349
18	WCI 5303307352
19	SWITCH-ENERGY SAVER, ROCKER
21B	WCI 5303001260
21A	WCI 5303305486
22	WCI 3018891
22	TUBE
23B	5304455649 Frigidaire Refrigerator Screw
23A	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24	WCI 218272501
25	WCI 218314102
26	PAN – CRISPER
28	END CAP-SHELF,PROTECTOR
29	WCI 218366101
30	WCI 5303285319
31	WCI 3206209
46	WCI 5303309849
47	WCI 218390598
59	240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
67	WCI 5303309850
81	5304455650 Frigidaire Refrigerator Screw
