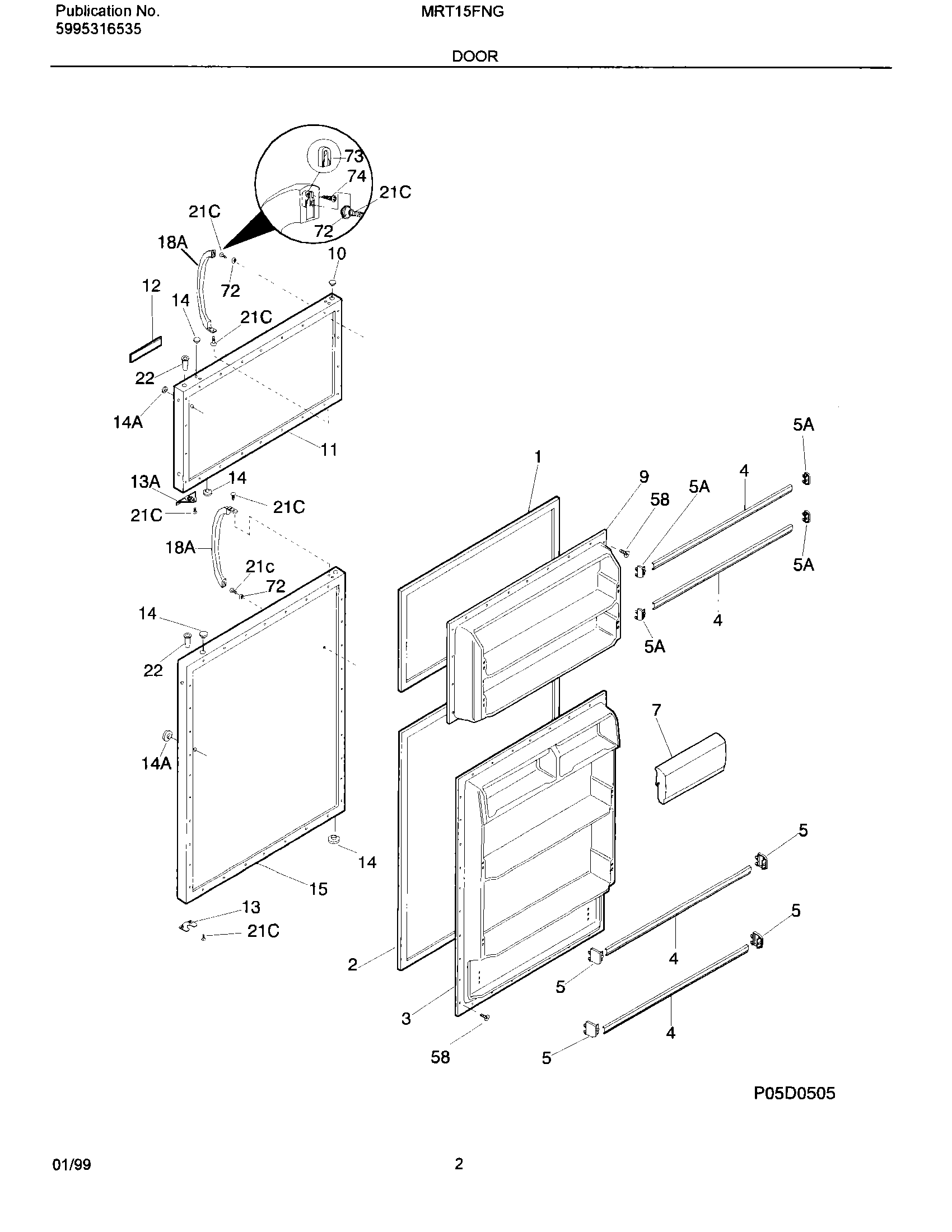

MRT15FNGW5 03 – DOOR

MRT15FNGW5 03 – DOOR

Written by

in

MRT15FNGW5 03 – DOOR

Products

PositionProduct
INSULATION
1GASKET-FRZR DOOR, MAGNETIC, WHITE
2218730603 Frigidaire Door Gasket
3WCI 218460801
4215366002 Frigidaire Refrigerator Door Wide Rack
5215267701 Frigidaire Refrigerator White Door Shelf Endcap Left or Right
5A215473602 Frigidaire Refrigerator White Left or Right Door Shelf End Cap
7DOOR-DAIRY
9WCI 218460701
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303917814
12WCI 218428201
12MAGNET-NAMEPLATE (NOT ILLUSTRATED)
13AWCI 218249001
13WCI 218800300
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
14A240494001 Frigidaire Refrigerator Plug Button
15WCI 5303917838
18AWHITE DOOR HANDLE
21C218252201 Frigidaire Refrigerator Screw
22WCI 218519300
58216858001 Frigidaire Refrigerator Screw
72WCI 218397000
73218396700 Frigidaire Door Handle Mounting Block
74215503203 Frigidaire Refrigerator Door Handle Screw
