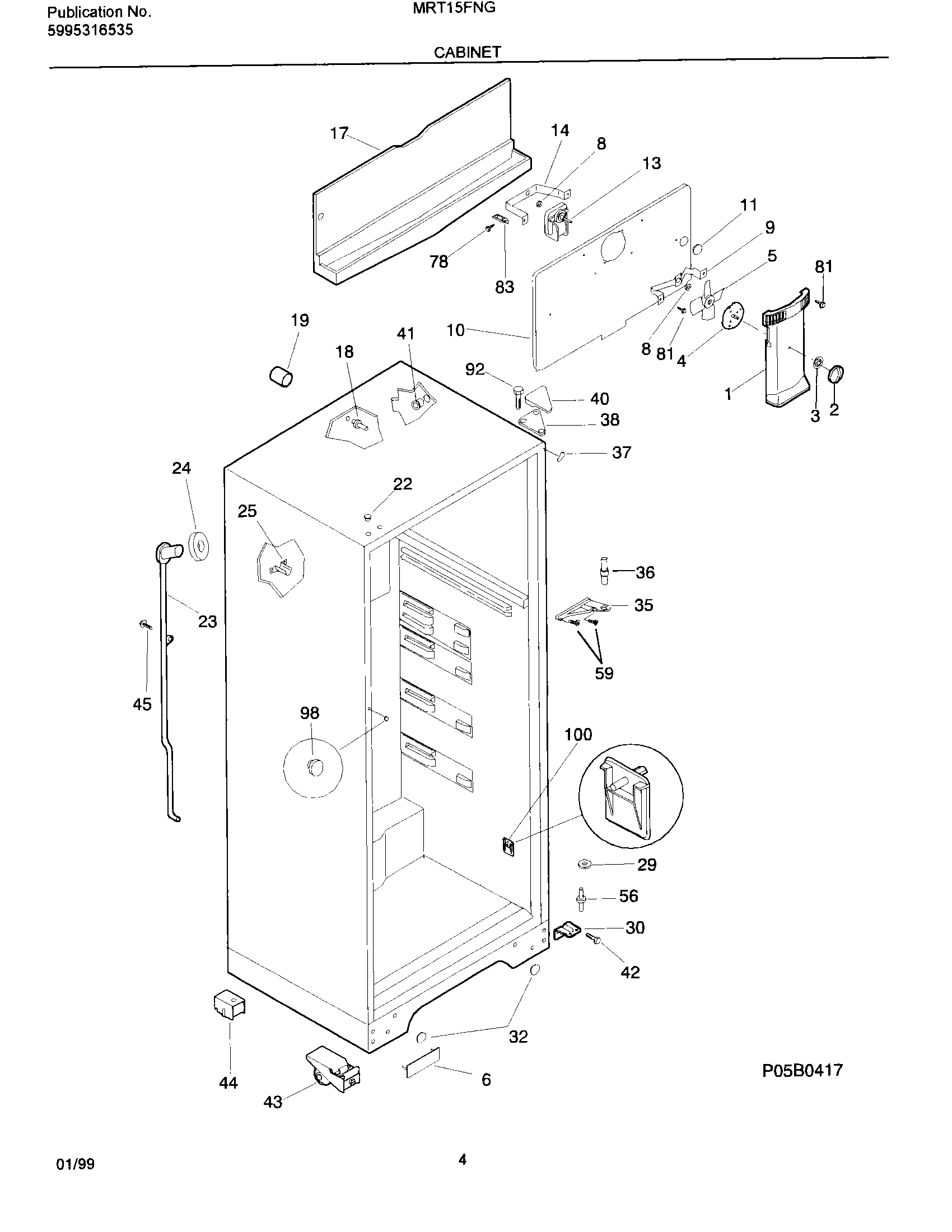

MRT15FNGW5 05 – CABINET

Products

Position	Product
	5303321319 Frigidaire Refrigerator White Touch Up Paint
1	WCI 218672501
2	WCI 5303307351
3	Nut,push-on
4	WCI 218722200
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	WCI 218448301
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303205118
10	NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
10	WCI 3206119
11	5303208309 Frigidaire Refrigerator Plug Hole
13	5300158289 Frigidaire Evaporator Fan Motor
14	WCI 5303322992
17	WCI 218725601
18	SUPPORT – EVAP COVER, (2)
19	TUBE-RUBBER
22	215774901 Frigidaire Refrigerator Button Plug
22	5304500008 Frigidaire Oven Screw
23	WCI 5303269702
24	WCI 5303207353
25	WCI 215774100
29	WASHER, .34 X .62 X .05, NYLON
29	WCI 5308000186
30	TAPPING PLATE, LOWER HINGE, (2) (NI)
30	WCI 3206136
32	PLUG-BUTTON, WHITE, CABINET BASE
35	BRACKET-CTR HINGE, LIGHT GREY
36	218251300 Frigidaire Refrigerator Center Hinge Pin
37	WCI 5303321081
38	WCI 3206100
40	WCI 3206101
41	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
41	5304509705 Frigidaire Refrigerator Grommet
42	241710601 Frigidaire Refrigerator Screw
43	BOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
43	WCI 5308009790
43	WCI 218724000
43	WCI 218703002
44	ROLLER ASSY, METAL HOUSING, REAR, (2)
45	5304455651 Frigidaire Refrigerator Screw
56	5303001321 Frigidaire Refrigerator Lower Hinge Pin
59	240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
78	5308000039 Frigidaire Refrigerator Screw
81	5304455650 Frigidaire Refrigerator Screw
83	WCI 5308000107
98	215099701 Frigidaire Refrigerator Button Plug
100	SUPPORT-PAN COVER
