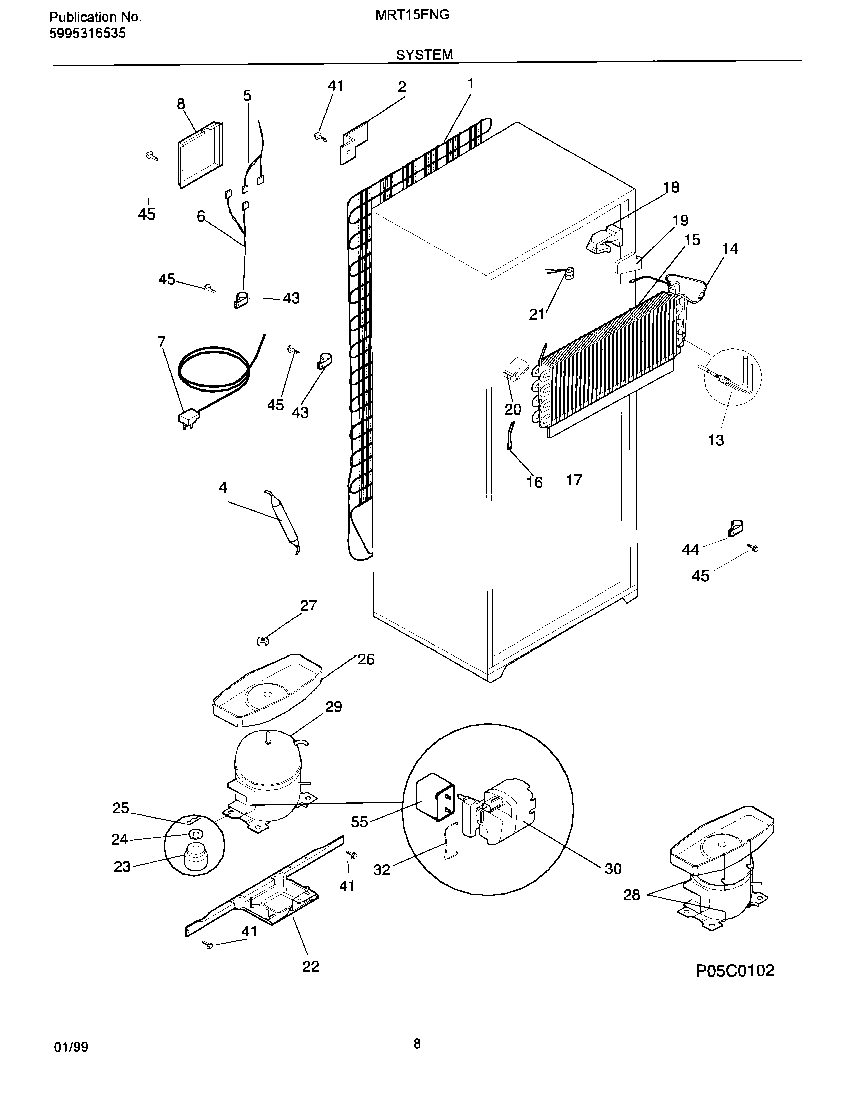

MRT15FNGW5 09 – SYSTEMS

Products

Position	Product
	WCI 3916557
1	WCI 5303001341
2	BRACKET, MOUNTIN, CONDENSER, (4)
2	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5	HARNESS-WIRING,CONTROL/DIVIDER
6	WCI 215257004
7	CORD-ELECTRIC POWER
8	WCI 5303001197
13	WCI 218429306
14	WCI 5308009754
15	EVAPORATOR
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	INSULATOR-EVAP, PLASTIC
18	INSULATION BLOCK, RH
19	INSULATION PLUG, RH
20	INSULATION BLOCK, LH
21	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22	WCI 218802500
22	5304500008 Frigidaire Oven Screw
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
24	WASHER-COMPR MTG
25	CLIP – COMPRESSOR MTG
26	WCI 215372500
26	5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
27	Nut,lock `1/4-20 ,drain pan mtg
28	PAN RETAINER KIT, SERVICE
29	5304511983 Frigidaire Refrigerator Compressor Assembly Kit
32	218740800 Frigidaire Refrigerator Clamp
41	WCI 530800039
43	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
44	5308000133 Frigidaire Refrigerator Clamp
45	218843801 Frigidaire Refrigerator Screw
45	5304455651 Frigidaire Refrigerator Screw
55	5304464438 Frigidaire Compressor Run Capacitor
