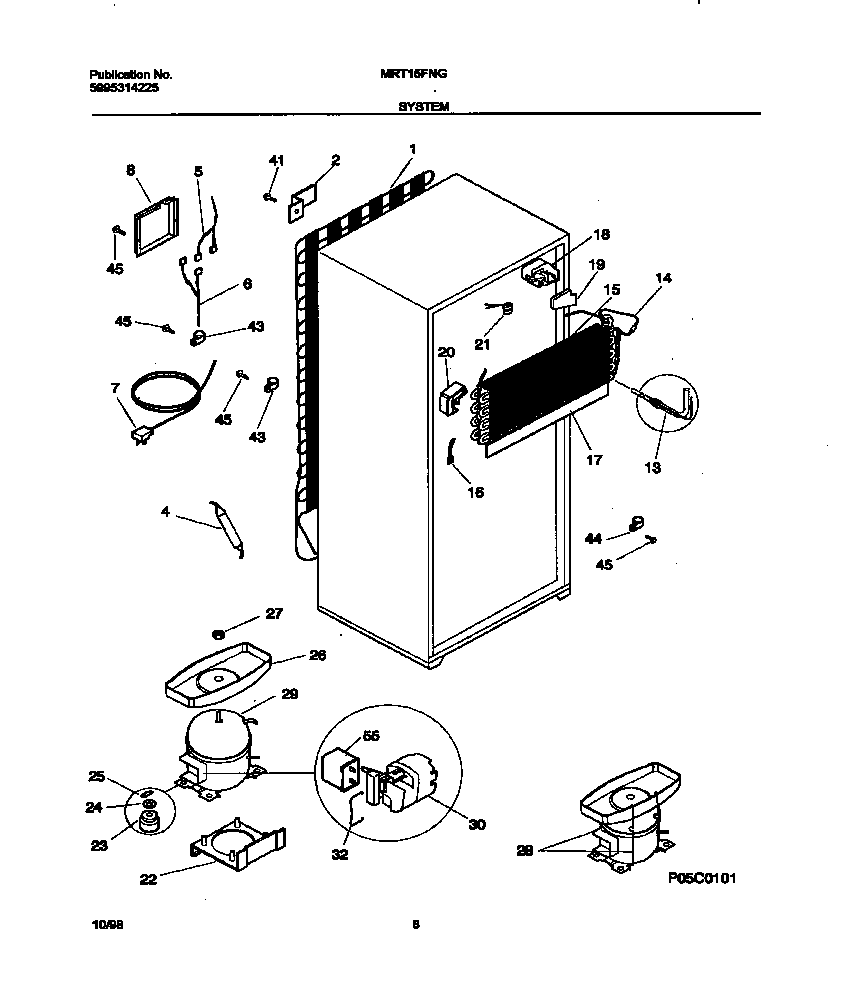

MRT15FNGY0 05 – SYSTEM

Products

PositionProduct
1WCI 218491000
2BRACKET, MOUNTIN, CONDENSER, (4)
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 3018900
6WCI 215257001
7CORD-ELECTRIC POWER
8WCI 5303001197
13WCI 215076403
14WCI 5308009754
15WCI 218818701
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17INSULATOR-EVAP, PLASTIC
18WCI 218821301
19INSULATION PLUG, RH
20WCI 218821201
21297216600 Frigidaire Refrigerator Defrost Thermostat
22WCI 5308013663
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24WASHER-COMPR MTG
25CLIP – COMPRESSOR MTG
26WCI 215372500
27Nut,lock `1/4-20 ,drain pan mtg
28PAN RETAINER KIT, SERVICE
29COMPRESSOR,R134A ,W/O ELECTRICALS
30WCI 218721101
32218740800 Frigidaire Refrigerator Clamp
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
445308000133 Frigidaire Refrigerator Clamp
45SCREW,HEX HD SER WSHR ,8-18 X 0.375
555304464438 Frigidaire Compressor Run Capacitor
678255303017691 Frigidaire Refrigerator Spacer-Tube
67826WCI 5304406721
67827WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
67828WASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILLUSTRATED)
678295303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
678305304455852 Frigidaire Refrigerator Screw
67831COVER-SOUND INSUL,PRESSBOARD/FOAM ,MACHINE COMPT
67832HOT TUBE REPAIR KIT-SERVICE
