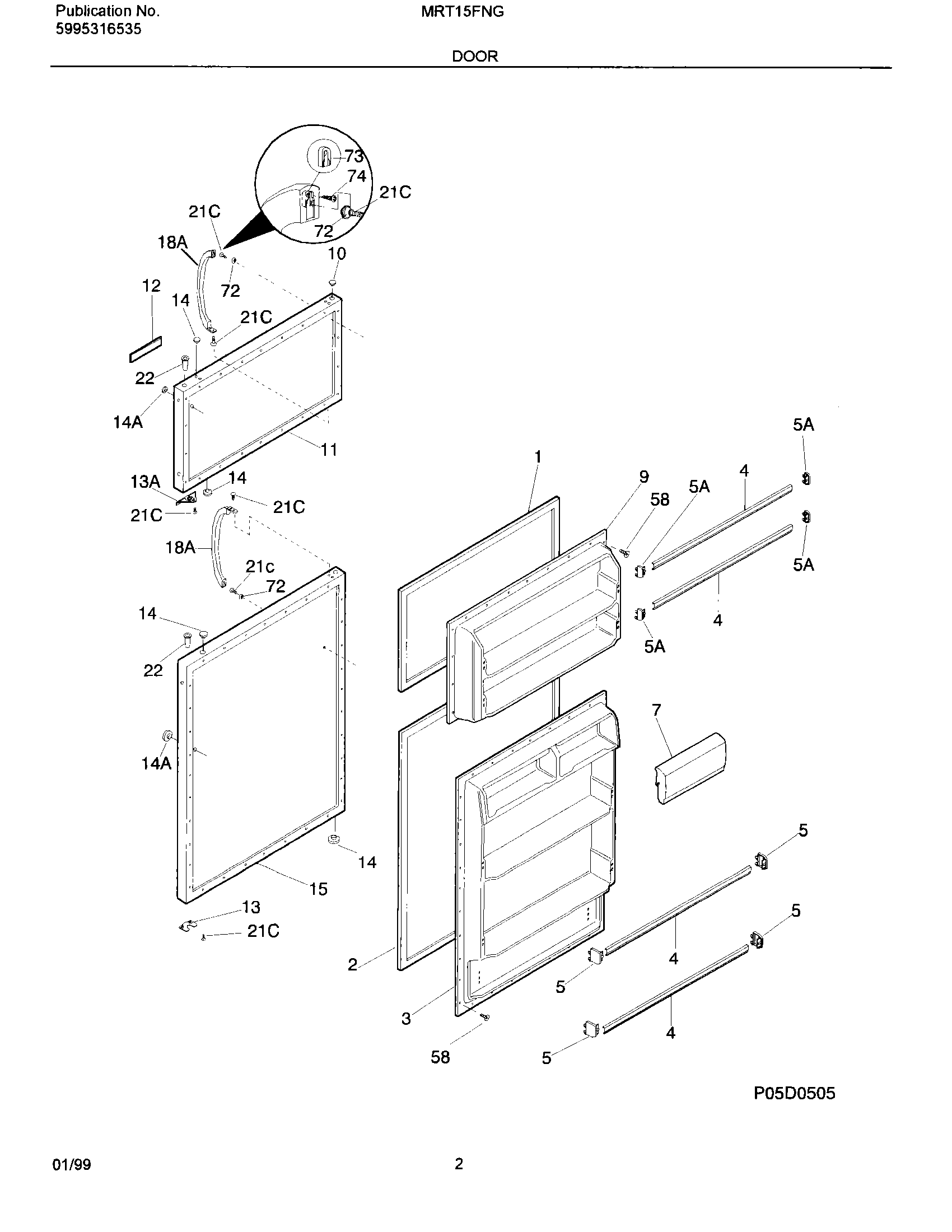

MRT15FNGY5 03 – DOOR

MRT15FNGY5 03 – DOOR

Written by

in

MRT15FNGY5 03 – DOOR

Products

PositionProduct
INSULATION
1WCI 215608901
2218730603 Frigidaire Door Gasket
3WCI 218460801
4215366002 Frigidaire Refrigerator Door Wide Rack
5A215473602 Frigidaire Refrigerator White Left or Right Door Shelf End Cap
5215267701 Frigidaire Refrigerator White Door Shelf Endcap Left or Right
7DOOR-DAIRY
9WCI 218460701
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917815
12WCI 218428202
12MAGNET-NAMEPLATE (NOT ILLUSTRATED)
13WCI 218800300
13AWCI 218249002
14APLUG-BUTTON, ALMOND, REFR DOOR FRONT, UPPER
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15WCI 5303917839
18AWCI 218428102
21C218252201 Frigidaire Refrigerator Screw
22WCI 218519300
58216858001 Frigidaire Refrigerator Screw
72WCI 218397000
73218396700 Frigidaire Door Handle Mounting Block
74215503203 Frigidaire Refrigerator Door Handle Screw
