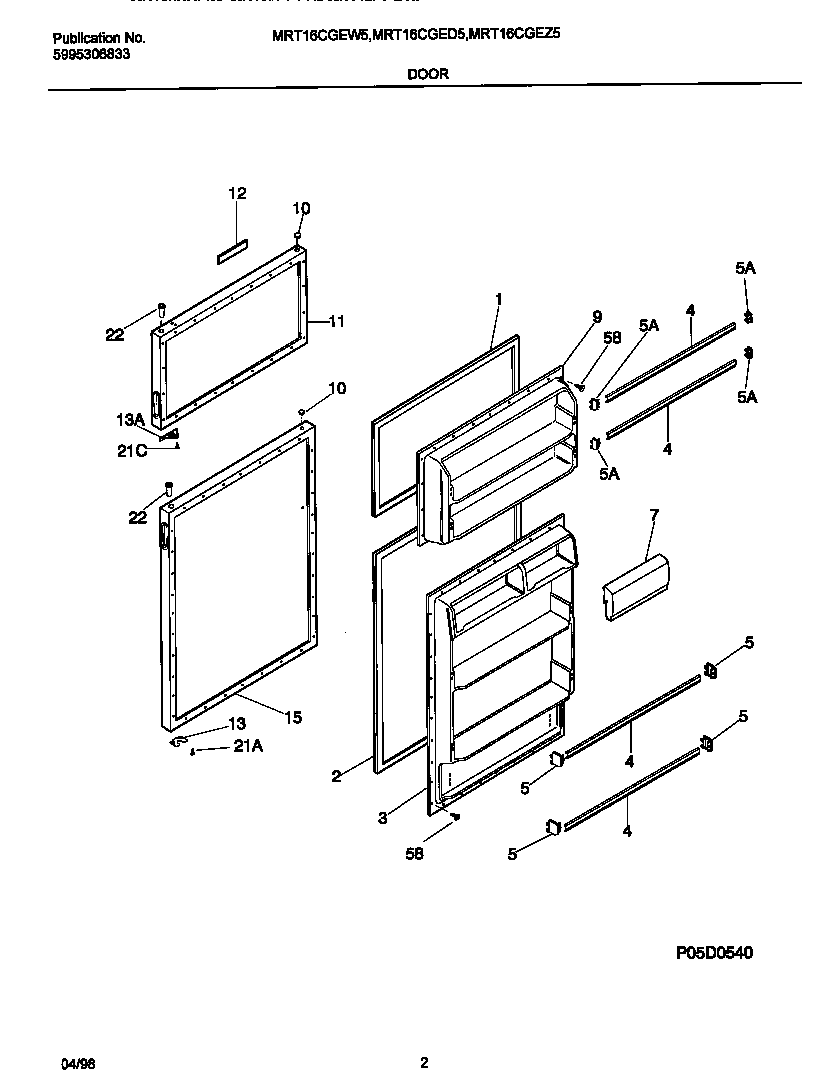

MRT16CGED5 02 – DOORS

Products

PositionProduct
*60121INSULATION
*60120TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
1WCI 215608901
2218730603 Frigidaire Door Gasket
3WCI 218460801
4215366002 Frigidaire Refrigerator Door Wide Rack
5215267701 Frigidaire Refrigerator White Door Shelf Endcap Left or Right
5215473602 Frigidaire Refrigerator White Left or Right Door Shelf End Cap
7DOOR-DAIRY
9WCI 218460701
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11PANEL-FRZR DOOR, ALMOND, WITH HANDLES, AND INSULATION
12WCI 218439129
13WCI 218800300
15WCI 218497502
21ASCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
21B218252201 Frigidaire Refrigerator Screw
22WCI 218519300
58216858001 Frigidaire Refrigerator Screw
