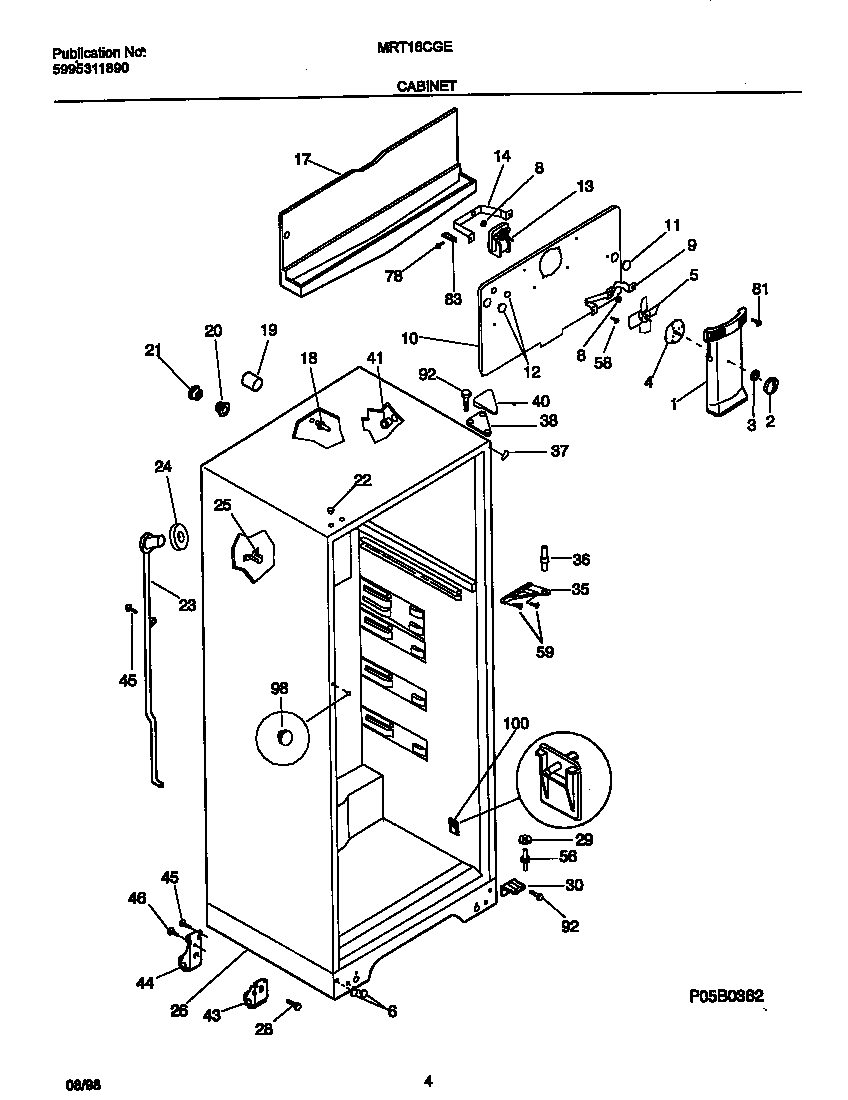

MRT16CGED6 03 – CABINET

Products

Position	Product
*21127	TOUCH, UP PAINT, ALMOND (NI)
*21123	WCI 218605300
*21121	NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*21122	WCI 218605200
*21125	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*21126	5304455650 Frigidaire Refrigerator Screw
*21124	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
*21129	PLUG, BUTTON, CABINET LINER (NI)
1	WCI 218672501
2	WCI 5303307351
3	Nut,push-on
4	WCI 218722200
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	PLUG-BUTTON, ALMOND, UPR HINGE HOLES
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303205118
10	WCI 218829701
11	5303208309 Frigidaire Refrigerator Plug Hole
12A	WCI 215079000
12B	WCI 215079100
13	5300158289 Frigidaire Evaporator Fan Motor
14	WCI 5303322992
17	WCI 218725602
18	SUPPORT – EVAP COVER, (2)
19	TUBE-RUBBER
20	WCI 5303001286
21	WCI 5303001287
22	WCI 215774911
23	WCI 5303210377
24	WCI 5303207353
25	WCI 215774100
26	WCI 218605002
28	BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
29	WCI 5308000186
30	WCI 218220200
35	WCI 218220102
36	218251300 Frigidaire Refrigerator Center Hinge Pin
37	WCI 5303321082
38	WCI 3206100
40	WCI 3206105
41	5304509705 Frigidaire Refrigerator Grommet
43	WCI 218703001
44	WCI 218713600
45B	5304455651 Frigidaire Refrigerator Screw
45A	SCREW,HEX HD SER WSHR ,8-18 X 0.375
46	BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
56	5303001321 Frigidaire Refrigerator Lower Hinge Pin
59	240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
83	WCI 5308000107
92	241710601 Frigidaire Refrigerator Screw
98	PLUG-BUTTON, ALMOND, CTR HINGE HOLE
100	SUPPORT-PAN COVER
