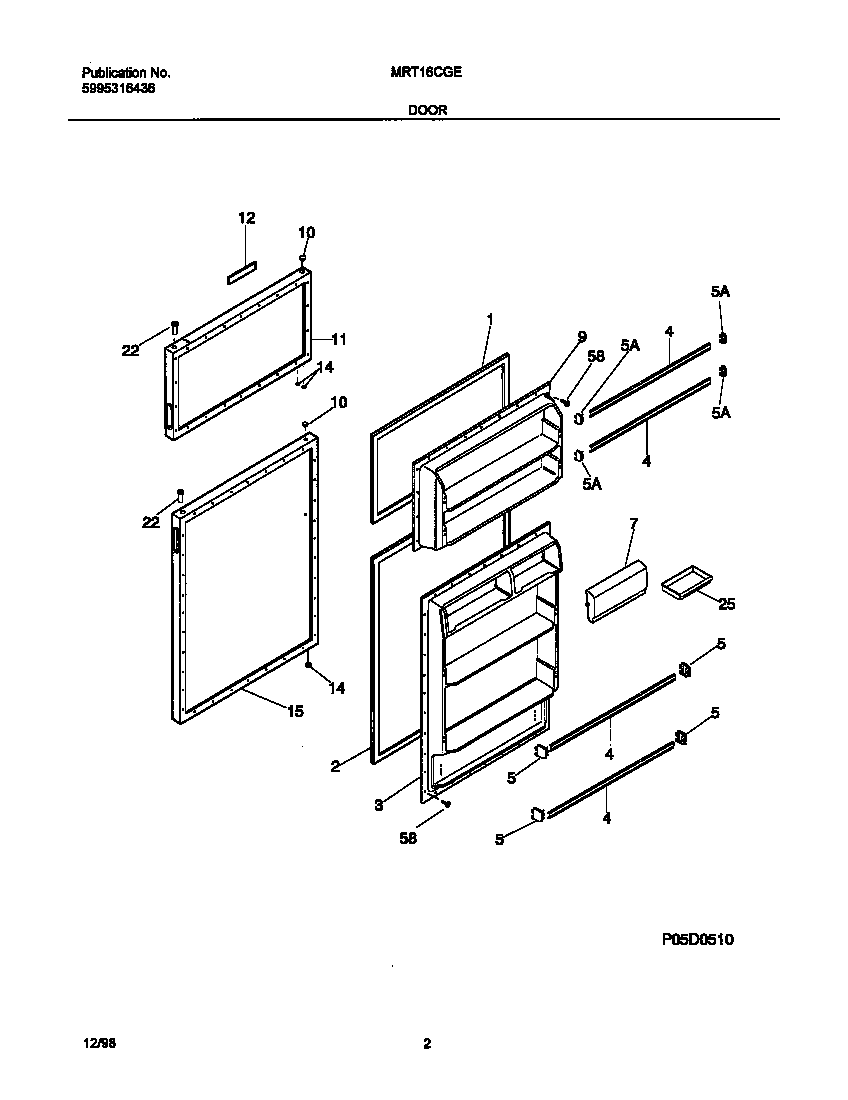

MRT16CGED8 02 – DOOR

MRT16CGED8 02 – DOOR

Written by

in

MRT16CGED8 02 – DOOR

Products

PositionProduct
*94201INSULATION
*94200TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
1WCI 215608901
2218730603 Frigidaire Door Gasket
3WCI 218359001
4215366002 Frigidaire Refrigerator Door Wide Rack
5215267701 Frigidaire Refrigerator White Door Shelf Endcap Left or Right
5215473602 Frigidaire Refrigerator White Left or Right Door Shelf End Cap
7DOOR-DAIRY
9WCI 218358801
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 218615700
12WCI 218504704
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15WCI 218615800
22WCI 218519300
255308000716 Frigidaire Refrigerator Dish
58Screw,No.10 pan hd ,8-18 x .5
