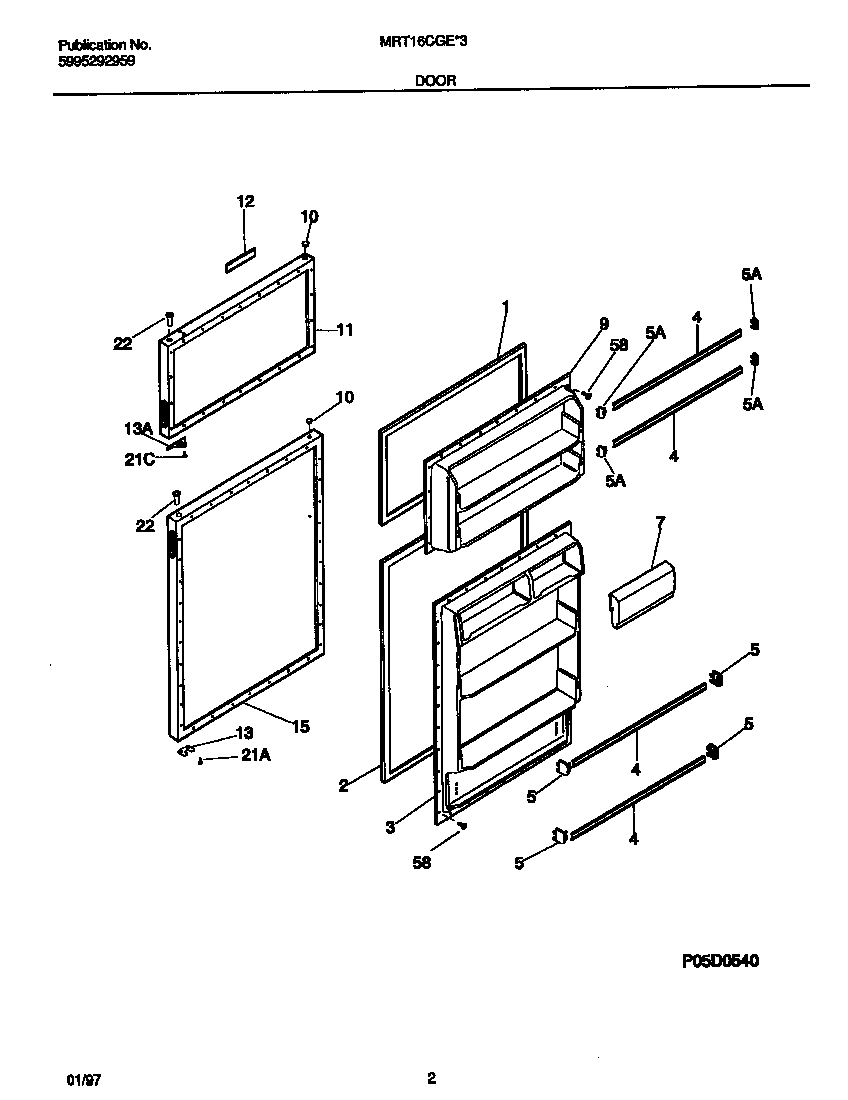

MRT16CGEZ3 02 – DOOR

Products

PositionProduct
*09600INSULATION
1GASKET-FRZR DOOR, MAGNETIC, WHITE
2218730603 Frigidaire Door Gasket
3WCI 218460801
4215366002 Frigidaire Refrigerator Door Wide Rack
5215473602 Frigidaire Refrigerator White Left or Right Door Shelf End Cap
5215267701 Frigidaire Refrigerator White Door Shelf Endcap Left or Right
7DOOR-DAIRY
9WCI 218460701
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11PANEL-FRZR DOOR, WHITE, WITH HANDLES, AND INSULATION
12WCI 218439128
12TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
13WCI 5308000255
13WCI 218249001
14240494001 Frigidaire Refrigerator Plug Button
15WCI 218497501
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
21218252201 Frigidaire Refrigerator Screw
22WCI 218519300
58216858001 Frigidaire Refrigerator Screw
