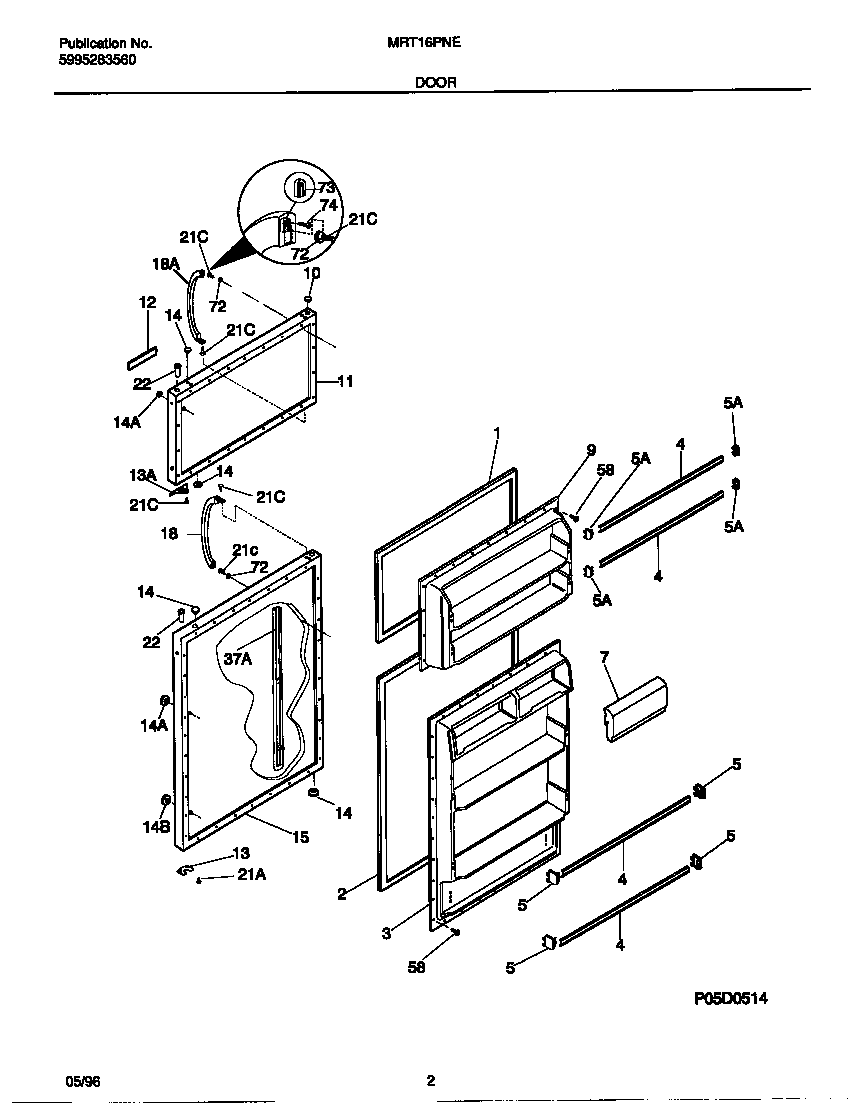

MRT16PNED0 02 – DOOR

MRT16PNED0 02 – DOOR

Written by

in

MRT16PNED0 02 – DOOR

Products

PositionProduct
*13280INSULATION
1WCI 215608901
2218730603 Frigidaire Door Gasket
3WCI 218359001
4215366002 Frigidaire Refrigerator Door Wide Rack
5215267701 Frigidaire Refrigerator White Door Shelf Endcap Left or Right
5215473602 Frigidaire Refrigerator White Left or Right Door Shelf End Cap
7WCI 218287816
9WCI 218358801
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917781
12WCI 218428202
12MAGNET-NAMEPLATE (NOT ILLUSTRATED)
13DOOR STOP, REFR SECTION
13WCI 218249002
14WCI 215352211
14WCI 218074002
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15WCI 5303917779
18WCI 218428105
18WCI 218428102
21218252201 Frigidaire Refrigerator Screw
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
22WCI 218519300
37BWCI 215782300
37WCI 218397702
37AWCI 215940700
58216858001 Frigidaire Refrigerator Screw
72WCI 218397000
73218396700 Frigidaire Door Handle Mounting Block
74215503203 Frigidaire Refrigerator Door Handle Screw
