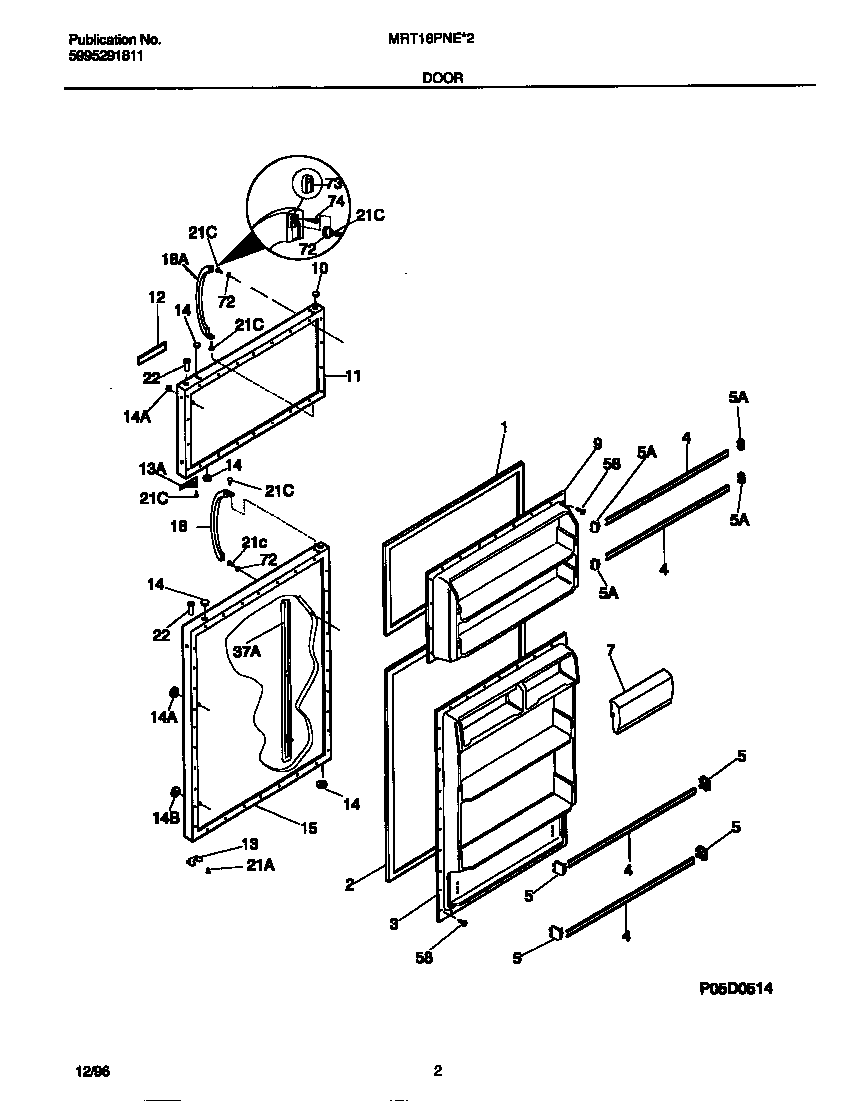

MRT16PNEW2 02 – DOOR

MRT16PNEW2 02 – DOOR

Written by

in

MRT16PNEW2 02 – DOOR

Products

PositionProduct
*01720INSULATION
1GASKET-FRZR DOOR, WHITE, MAGNETIC
2218730603 Frigidaire Door Gasket
3WCI 218359001
4215366002 Frigidaire Refrigerator Door Wide Rack
5215267701 Frigidaire Refrigerator White Door Shelf Endcap Left or Right
5215473602 Frigidaire Refrigerator White Left or Right Door Shelf End Cap
7WCI 218287816
9WCI 218358801
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303917780
12MAGNET-NAMEPLATE (NOT ILLUSTRATED)
12WCI 218428201
13WCI 218249001
13DOOR STOP, REFR SECTION
14240494001 Frigidaire Refrigerator Plug Button
14BWCI 218074002
14AWCI 218074001
15WCI 5303917778
18WHITE DOOR HANDLE
18WCI 218428104
21218252201 Frigidaire Refrigerator Screw
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
22WCI 218519300
37WCI 218397701
37BWCI 215940700
37AWCI 215782300
58216858001 Frigidaire Refrigerator Screw
72WCI 218397000
73218396700 Frigidaire Door Handle Mounting Block
74215503203 Frigidaire Refrigerator Door Handle Screw
