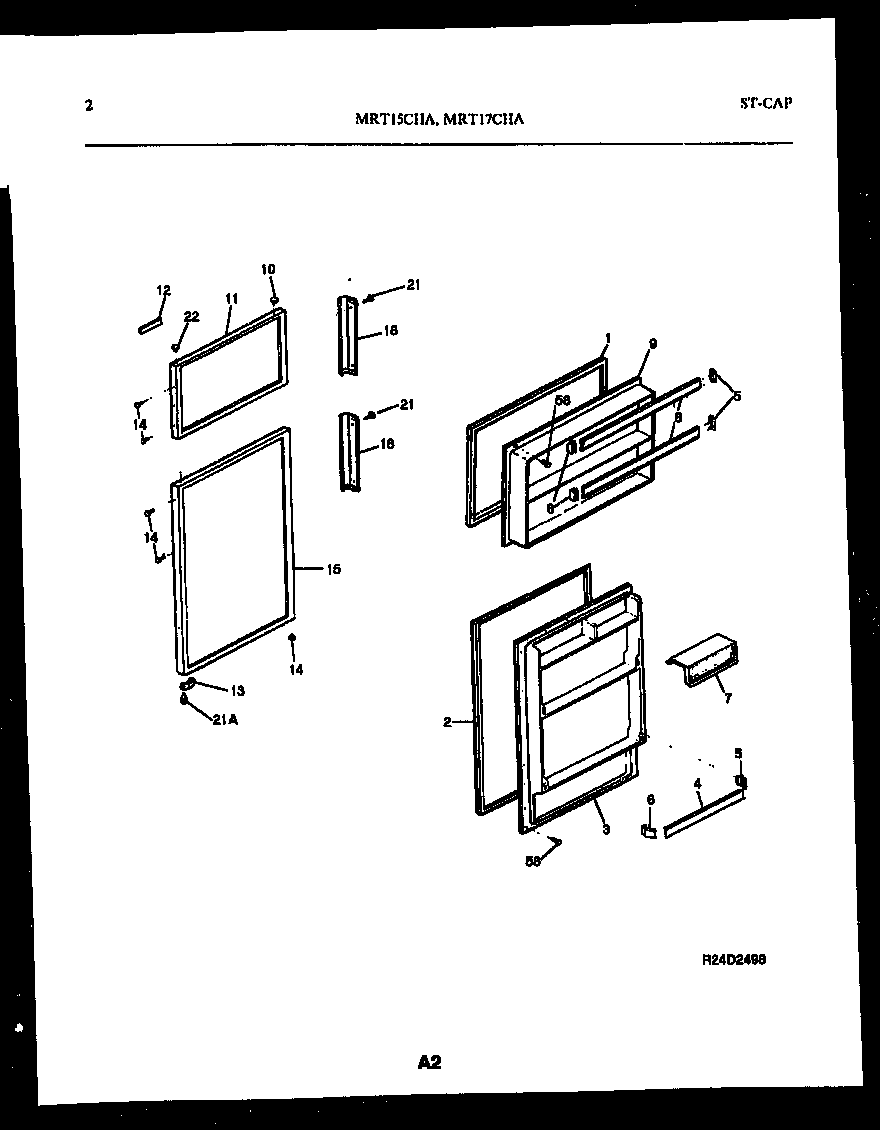

MRT17CHAYD0 02 – DOOR PARTS

Products

Position	Product
*65962	INSULATION-BULK (NON-ILLUSTRATED)
1	GASKET-FRZR DOOR, WHITE, MAGNETIC
2	218730603 Frigidaire Door Gasket
3	WCI 5303207227
4	RACK - DOOR
5	SUPPORT - DOOR RACK, RH
6	SUPPORT - DOOR RACK, LH
7	WCI 5303290741
8	RACK - DOOR
9	WCI 5303207236
10	PLUG-BUTTON, WHITE, HINGE BRG HOLE
10	PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11	PANEL - FRZR DOOR, WHITE, W / INSULATION
11	PANEL - FRZR DOOR, ALMOND, W / INSULATION
12	WCI 5303276130
13	WCI 5308000255
14	PLUG-BUTTON, ALMOND, HANDLE/DR STOP
14	240494001 Frigidaire Refrigerator Plug Button
15	PANEL-REFR DOOR, WHITE, W / INSULATION
15	PANEL-REFR DOOR, ALMOND, W / INSULATION
18	WCI 215164904
21	WCI 5308011745
21	SCREW-HANDLE MTG, 8 CR TRUSS HD, 10(D) X 1/2
22	BEARING-HINGE
58	5304455651 Frigidaire Refrigerator Screw
