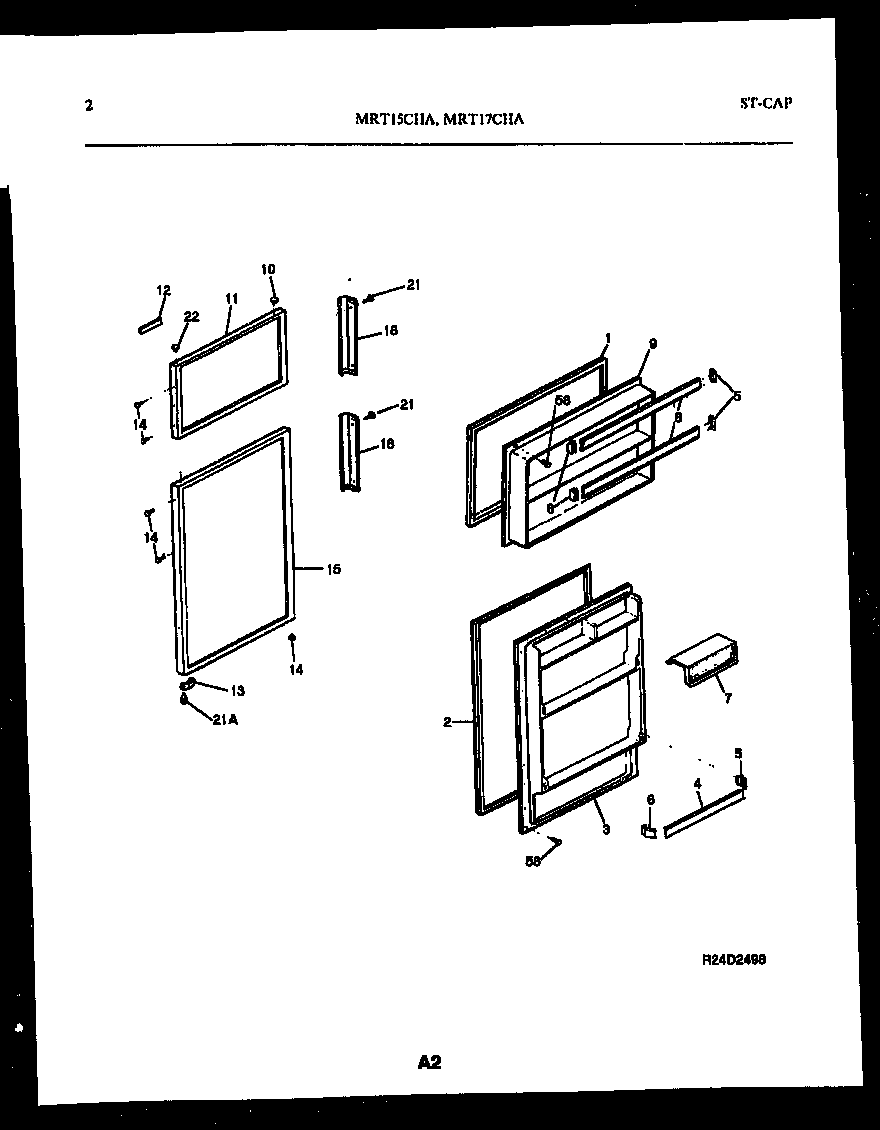

MRT17CHAZ0-00 02 – DOOR PARTS

MRT17CHAZ0-00 02 – DOOR PARTS

Written by

in

MRT17CHAZ0-00 02 – DOOR PARTS

Products

PositionProduct
*66088INSULATION-BULK (NON-ILLUSTRATED)
1GASKET-FRZR DOOR, WHITE, MAGNETIC
2218730603 Frigidaire Door Gasket
3WCI 5303207227
4RACK – DOOR
5SUPPORT – DOOR RACK, RH
6SUPPORT – DOOR RACK, LH
7WCI 5303290741
8RACK – DOOR
9WCI 5303207236
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11PANEL – FRZR DOOR, WHITE, W / INSULATION
12WCI 5303276130
13WCI 5308000255
14240494001 Frigidaire Refrigerator Plug Button
15PANEL-REFR DOOR, WHITE, W / INSULATION
18WCI 215164904
21SCREW-HANDLE MTG, 8 CR TRUSS HD, 10(D) X 1/2
21AWCI 5308011745
22BEARING-HINGE
585304455651 Frigidaire Refrigerator Screw
