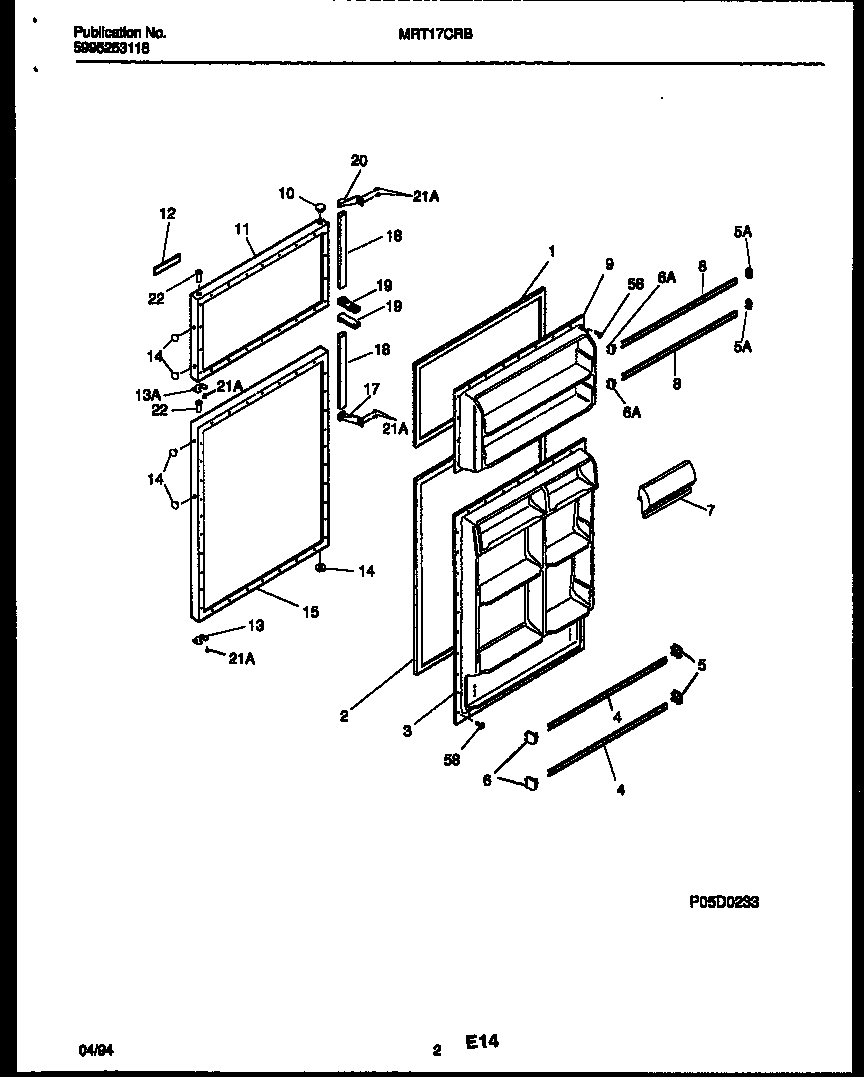

MRT17CRBD0 02 – DOOR PARTS

MRT17CRBD0 02 – DOOR PARTS

Written by

in

MRT17CRBD0 02 – DOOR PARTS

Products

PositionProduct
*98860INSULATION
1GASKET-FRZR DOOR, ALMOND, MAGNETIC
2218730603 Frigidaire Door Gasket
3WCI 215026201
4215366002 Frigidaire Refrigerator Door Wide Rack
5ASUPPORT-DOOR RACK, EXTENDS .56“, RH
5SUPPORT-DOOR RACK, EXTENDS 1.06“, RH
6ASUPPORT-DOOR RACK, EXTENDS .56“, LH
6SUPPORT-DOOR RACK, EXTENDS 1.06“, LH
7WCI 5303304618
8WCI 5303300237
9WCI 5303290026
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11PANEL-FRZR DOOR, ALMOND
12WCI 215503711
13DOOR STOP, REFR SECTION
13AWCI 5308000255
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15PANEL-REFR DOOR, ALMOND
17HANDLE END
18WCI 5303302991
19WCI 5303001296
20HANDLE END
21AWCI 5308011745
22BEARING-HINGE
585304455651 Frigidaire Refrigerator Screw
