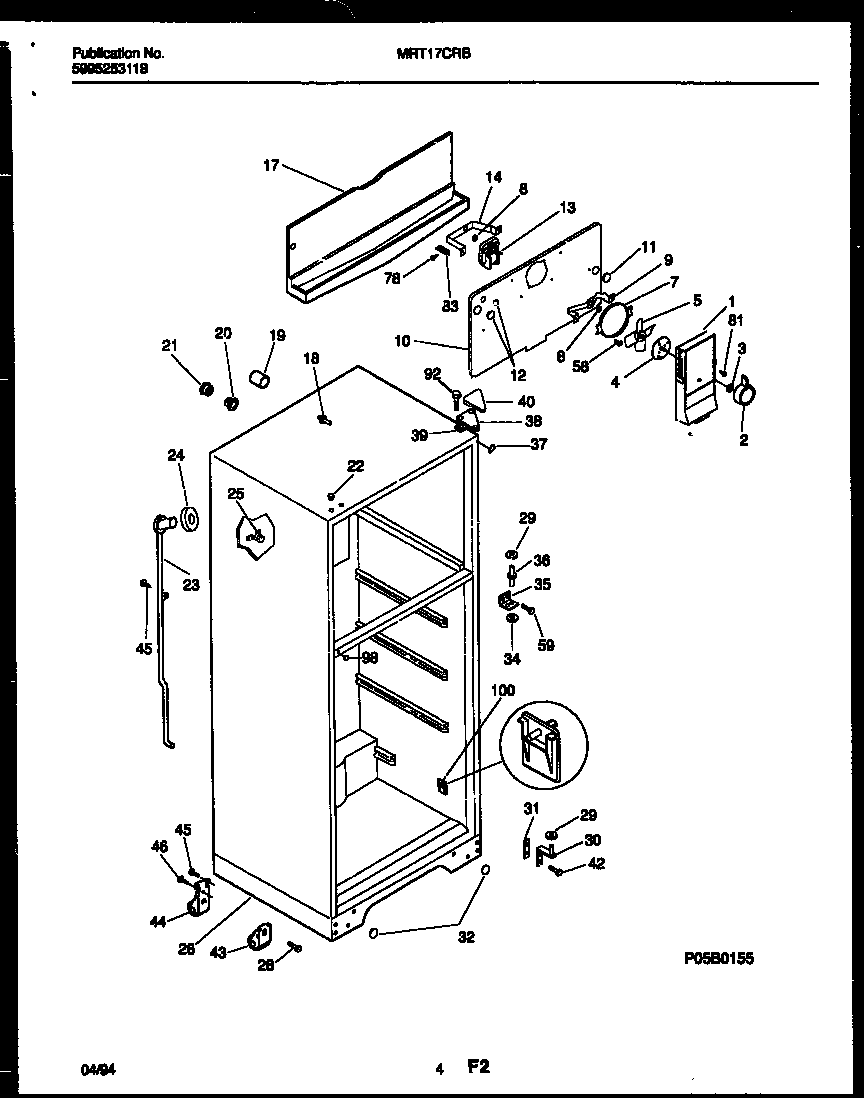

MRT17CRBD0 03 – CABINET PARTS

Products

Position	Product
*98864	PLUG, BUTTON, CABINET LINER (NI)
1	WCI 5303299977
2	WCI 5303299978
3	Nut,push-on
4	DAMPER-FAN COVER
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
7	RING-FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303205118
10	WCI 3001527
10A	WCI 5303209636
11	5303208309 Frigidaire Refrigerator Plug Hole
12	WCI 215079100
12	WCI 215079000
13	5300158289 Frigidaire Evaporator Fan Motor
14	BRACKET-MOTOR MTG, REAR
17	TROUGH-DRAIN
18	SUPPORT - EVAP COVER, (2)
19	TUBE-RUBBER
20	WCI 5303001286
21	WCI 5303001287
22	PLUG-BUTTON, ALMOND, UPR HINGE HOLES
23	WCI 5303210377
24	WCI 5303207353
25	WCI 215774100
26	BASE-CABINET
28	BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
29	WASHER, .34 X .62 X .05, NYLON
30A	TAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
30B	TAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
30	BRACKET-LOWER HINGE, W/ HINGE PIN
31	WCI 5303212488
32	WCI 5303212923
34	WCI 5308000186
35	WCI 218085400
36	WCI 5308000184
37	TRIM-CABINET CORNER, ALMOND
38A	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
38	BRACKET-UPPER HINGE
39	SHIM - UPPER HINGE
40	COVER-UPPER HINGE, ALMOND
42	241710601 Frigidaire Refrigerator Screw
43	WCI 5303212490
44	WCI 5308009773
45	5304455651 Frigidaire Refrigerator Screw
46	BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
59	WCI 215097000
81	5304455650 Frigidaire Refrigerator Screw
83	WCI 5308000107
98	PLUG-BUTTON, ALMOND, CTR HINGE HOLE
100	SUPPORT-PAN COVER
