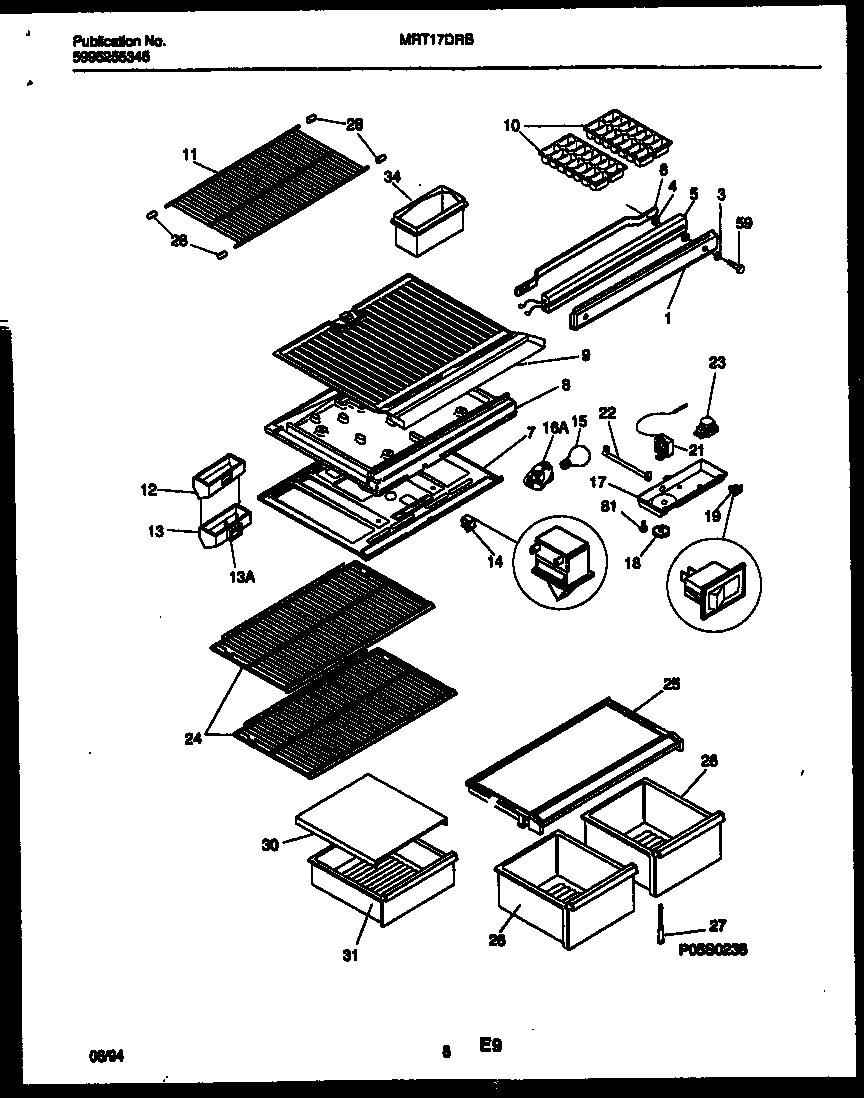

MRT17DRBW0 05 – SHELVES AND SUPPORTSadmin2025-04-26T09:26:08+00:00MRT17DRBW0 05 – SHELVES AND SUPPORTS
Products
| Position | Product |
|---|
| 1 | WCI 5303200465 |
| 3 | WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI) |
| 4 | WCI 218188100 |
| 5 | WCI 5308017408 |
| 6 | WCI 215170801 |
| 7A | WCI 5303001380 |
| 7 | TOP PANEL-REFR |
| 8 | WCI 5303018899 |
| 8A | 3205266 Frigidaire Refrigerator Edge Protector |
| 9 | WCI 5303001537 |
| 10 | 215667501 Frigidaire Refrigerator Ice Tray Primary |
| 11 | SHELF-FREEZER, FIXED/FLAT, FULL WIDTH, WIRE |
| 12A | 5303001449 Frigidaire Refrigerator Seal |
| 12 | DEFLECTRO, AIR, W/SEAL |
| 13 | WCI 5303001448 |
| 13A | EXTENSION, AIR DEFLECTOR, WITH INSULATION |
| 14 | 5309918806 Frigidaire Refrigerator Light Switch Door |
| 15 | 316538904 Frigidaire Oven Lamp Light |
| 16A | 218906802 Frigidaire Light Lamp Socket |
| 17 | WCI 5303299980 |
| 17A | NUT, ANCHOR (NI) |
| 18 | WCI 5303299979 |
| 19 | SWITCH-ENERGY SAVER, ROCKER |
| 21A | WCI 5303001260 |
| 21 | WCI 5303018894 |
| 22 | WCI 3018891 |
| 23 | 215846602 Frigidaire Refrigerator 8-Hour Defrost Timer |
| 23A | 5304455649 Frigidaire Refrigerator Screw |
| 24 | SHELF-SLIDING, WIRE, REFR SECTION |
| 24A | WCI 5303283297 |
| 25 | WCI 5349001603 |
| 26 | PAN-CRISPER, 11.35`` WIDE |
| 27 | SUPPORT-CRISPER CVR, ADJUSTABLE |
| 28 | END CAP-SHELF,PROTECTOR |
| 30 | WCI 08009763 |
| 31 | WCI 5303295108 |
| 34 | WCI 3018945 |
| 59 | 240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4 |
| 81 | 5304455650 Frigidaire Refrigerator Screw |
