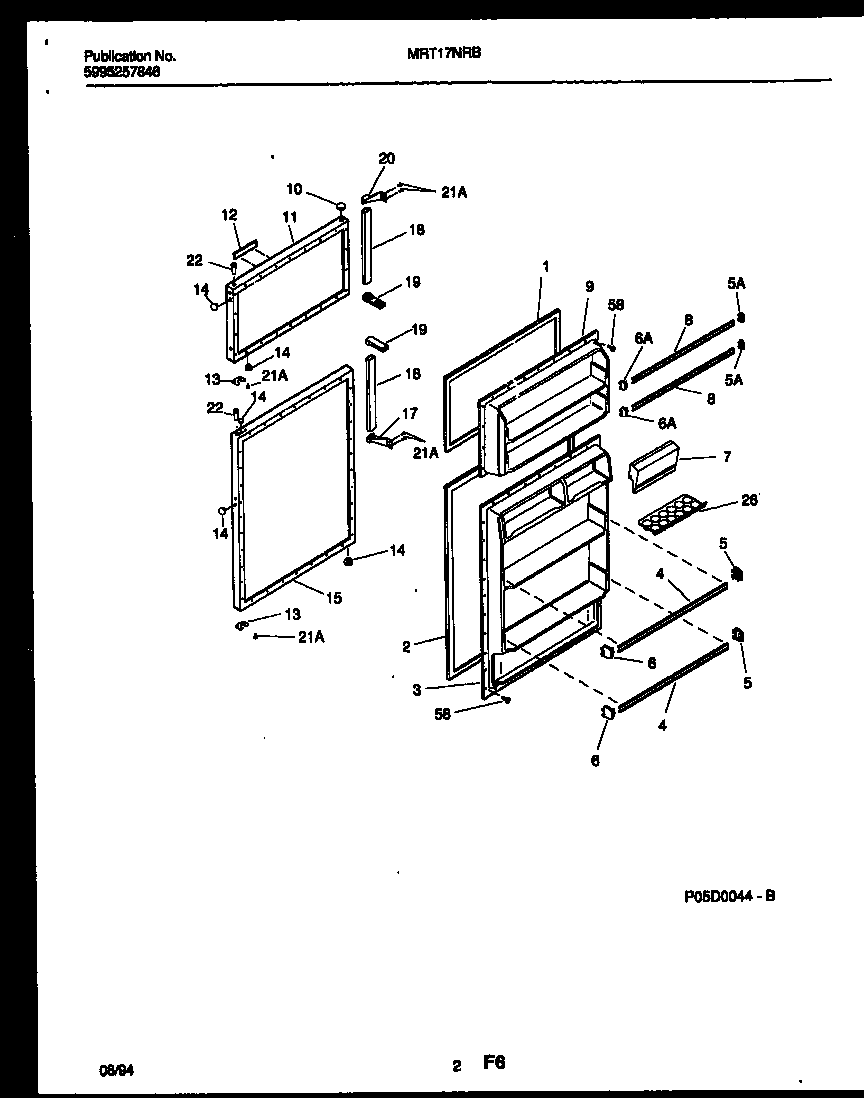

MRT17NRBD0 02 – DOOR PARTS

MRT17NRBD0 02 – DOOR PARTS

Written by

in

MRT17NRBD0 02 – DOOR PARTS

Products

PositionProduct
*11097INSULATION
1GASKET-FRZR DOOR, ALMOND, MAGNETIC
2218730603 Frigidaire Door Gasket
3WCI 215026201
4215366002 Frigidaire Refrigerator Door Wide Rack
5ASUPPORT-DOOR RACK, EXTENDS .56“, RH
5SUPPORT-DOOR RACK, EXTENDS 1.06“, RH
6ASUPPORT-DOOR RACK, EXTENDS .56“, LH
6SUPPORT-DOOR RACK, EXTENDS 1.06“, LH
7WCI 5303304655
7AWCI 5303001380
8WCI 5303300237
9WCI 5303290026
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11PANEL-FRZR DOOR, ALMOND
12WCI 215366311
12ATAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
12BTAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
13WCI 5308000255
13DOOR STOP, REFR SECTION
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15PANEL-REFR DOOR, ALMOND
17HANDLE END
18WCI 5303302991
19WCI 5303001296
20HANDLE END
21AWCI 5308011745
22BEARING-HINGE
26215817806 Frigidaire Refrigerator Egg Tray
585304455651 Frigidaire Refrigerator Screw
